Frame-Mounted Heat Shields

The frame-mounted heat shields are attached to the top of the frame and crossmembers with bolts. The body must be lifted off the frame enough for access to the bolts that attach the heat shields to the top of the frame.

Structural Enhancement

NOTE: Portions of the frame are removed from this drawing to show the location of the inserts.

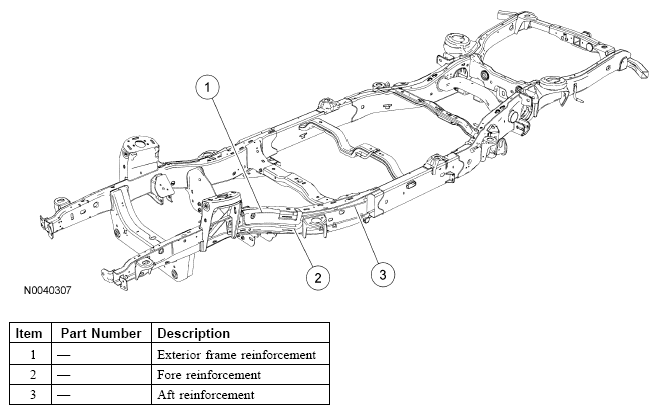

Fig 1: Identifying Exterior Frame Reinforcement, Fore Reinforcement And Aft Reinforcement

Courtesy of FORD MOTOR CO.

The purpose of these inserts is to enhance the structural rigidity of the frame in this area. The inserts cannot be replaced or repaired.
