Four Wheel Drive (4WD) Control Module

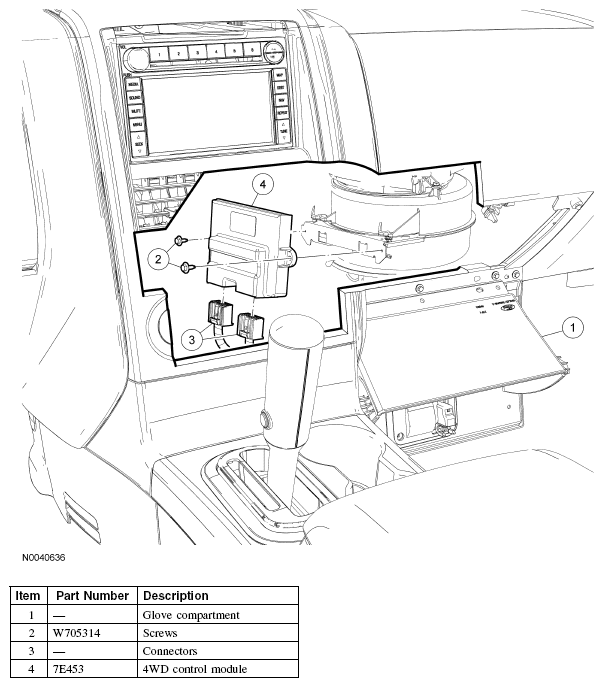

Fig 1: Identifying Four Wheel Drive (4WD) Control Module

Courtesy of FORD MOTOR CO.

1. Open the glove compartment, press in on sides and lower it to gain access.
2. Remove the 2 screws.
3. Disconnect the electrical connectors.
4. Remove the 4WD control module.
5. To install, reverse the removal procedure.
