Intermediate Shaft Speed Sensor: Removal

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to the JACKING & LIFTING .

Four wheel drive (4WD) vehicles

Disconnect the front driveshaft from the transfer case.

Fig 1: Locating Front Driveshaft At Transfer Case
Courtesy of FORD MOTOR CO.
Disconnect the front driveshaft from the front differential.

Fig 2: Locating Front Driveshaft Bolts
Courtesy of FORD MOTOR CO.
Remove the front driveshaft from the vehicle.

Fig 3: Identifying Front Driveshaft
Courtesy of FORD MOTOR CO.

All vehicles

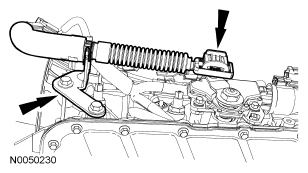

Remove the cable shield by prying on the side of the shield closest to the boot, then sliding the shield away from the boot.

Fig 4: Identifying Cable Shield
Courtesy of FORD MOTOR CO.
Remove the selector lever cable and bracket.

Fig 5: Locating Selector Lever Cable
Courtesy of FORD MOTOR CO.

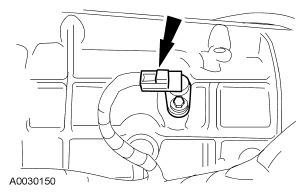

Disconnect the intermediate shaft speed sensor electrical connector.

Fig 6: Locating Intermediate Shaft Speed (ISS) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the intermediate shaft speed sensor.
1. Remove the intermediate shaft speed sensor screw.
2. Remove the intermediate shaft speed sensor from the transmission.
- Inspect the intermediate shaft speed sensor O-ring for damage. If damaged, install a new O-ring.

  Fig 7: Identifying ISS Sensor
  Courtesy of FORD MOTOR CO.
