Auxiliary Relay Box 2

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

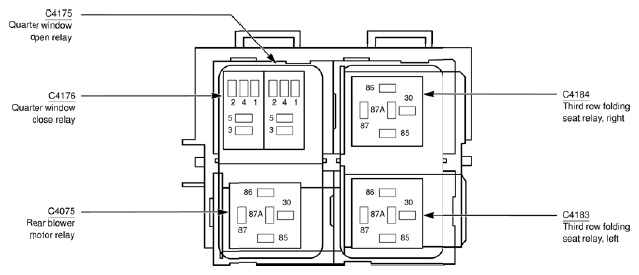

Fig 1: Auxiliary Relay Box 2 Components

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 2 RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C4075	Rear blower relay
C4176	Quarter window close relay
C4175	Quarter window open relay
C4184	Third row folding seat relay, right
C4183	Third row folding seat relay, left
