Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY - MANUAL .
  2. Pull and remove the blower motor switch knob.
  3. Release the clips and remove the blower motor switch.

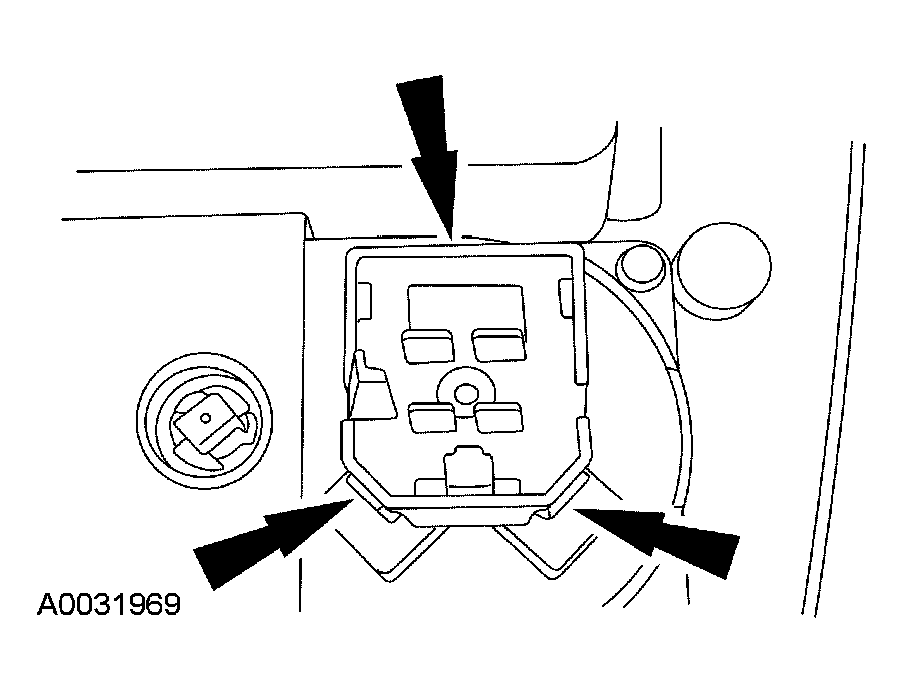

    Fig 1: Removing Blower Motor Switch
    G03930642Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
