Engine Mechanical: Mechanical: Engine: Removal: Engine

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Modular Engine Lift Bracket 303-F047 (014-00073)

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
3. Remove the radiator. For additional information, refer to REMOVAL AND INSTALLATION .
4. Remove the accessory drive belt.
5. Remove the powertrain control module (PCM) and the support bracket. For additional information, refer to REMOVAL .

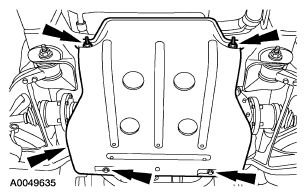

6. If equipped, remove the bolts, nuts and the skid plate.
   Fig 1: Locating Skid Plate Nut & Bolts

   Courtesy of FORD MOTOR CO.
7. Remove the starter. For additional information, refer to REMOVAL .
8. Drain the engine oil.
9. Remove and discard the oil filter.
   Fig 2: Locating Oil Filter

   Courtesy of FORD MOTOR CO.
10. Disconnect the engine oil temperature (EOT) sensor electrical connector.
    Fig 3: Locating Engine Oil Temperature Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
11. Remove the hood.
12. Disconnect the heater hose.
    Fig 4: Locating Heater Hose

    Courtesy of FORD MOTOR CO.
13. Disconnect the degas bottle coolant hose.
    Fig 5: Locating Coolant Hose Clip

    Courtesy of FORD MOTOR CO.
14. Remove the bolt and the ground cable.
    Fig 6: Locating Ground Cable Bolts

    Courtesy of FORD MOTOR CO.
15. If equipped, disconnect the block heater electrical connector.
    Fig 7: Locating Block Heater Electrical Connector

    Courtesy of FORD MOTOR CO.
16. Remove the bolts and position the power steering pump aside.

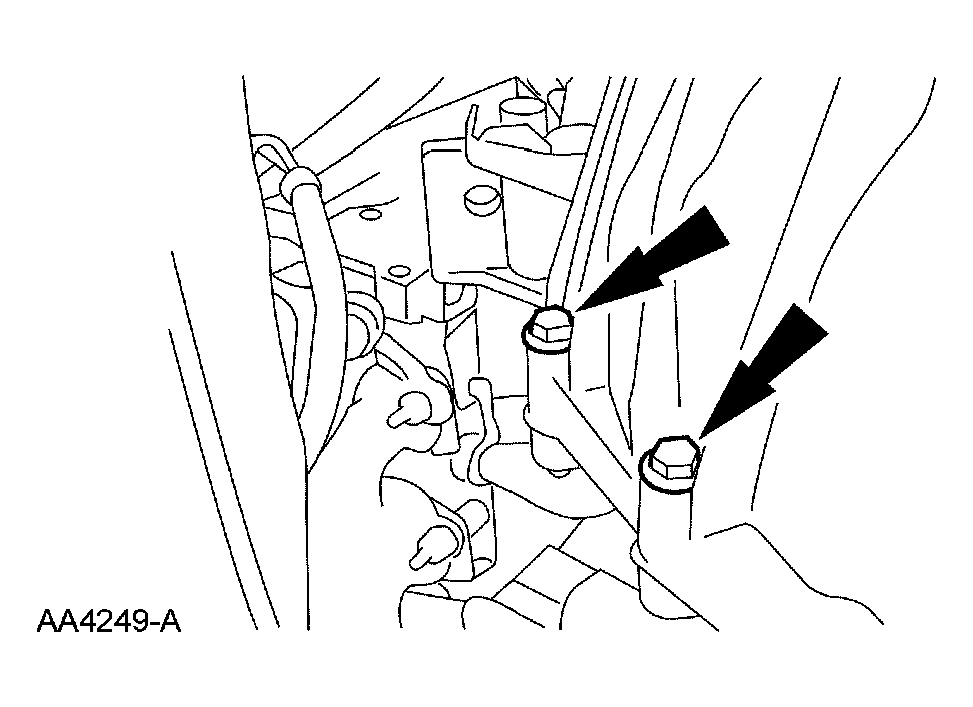

    Fig 8: Identifying Power Steering Pump Bolts

    Courtesy of FORD MOTOR CO.
17. Disconnect the A/C compressor electrical connector.
    Fig 9: Locating A/C Compressor Electrical Connector

    Courtesy of FORD MOTOR CO.
18. Remove the 2 nuts and the wiring harness retainers.

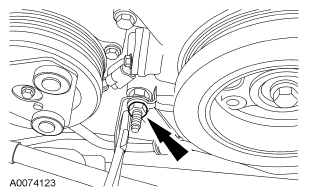

    Fig 10: Locating Wiring Harness Retainers Nut

    Courtesy of FORD MOTOR CO.
19. Disconnect the crankshaft position (CKP) sensor electrical connector.
    Fig 11: Locating Crankshaft Position (CKP) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
20. Remove the bolts and position the A/C compressor aside.
    Fig 12: Locating A/C Compressor Bolts

    Courtesy of FORD MOTOR CO.

Expedition vehicles

21. Remove the transmission fluid filler tube support bolt.
    Fig 13: Identifying Transmission Filler Tube Retaining Bolt

    Courtesy of FORD MOTOR CO.

All vehicles

22. Remove the nut and the transmission cooler tube support bracket.
    Fig 14: Locating Transmission Cooler Tube Support Bracket Nut

    Courtesy of FORD MOTOR CO.
23. Remove the nut and the power steering pressure hose support bracket.
    Fig 15: Locating Power Steering Pressure Hose Support Bracket Nut

    Courtesy of FORD MOTOR CO.
24. Remove the bolt and the starter electrical harness support bracket.
    Fig 16: Locating Starter Electrical Harness Support Bracket Bolts

    Courtesy of FORD MOTOR CO.
25. If equipped, remove the 3 bolts and the LH engine-to-transmission support bracket.
    Fig 17: Locating LH Engine-To-Transmission Support Bracket Bolts

    Courtesy of FORD MOTOR CO.
26. If equipped, remove the 3 bolts and the RH engine-to-transmission support bracket.
    Fig 18: Locating RH Engine-To-Transmission Support Bracket Bolts

    Courtesy of FORD MOTOR CO.

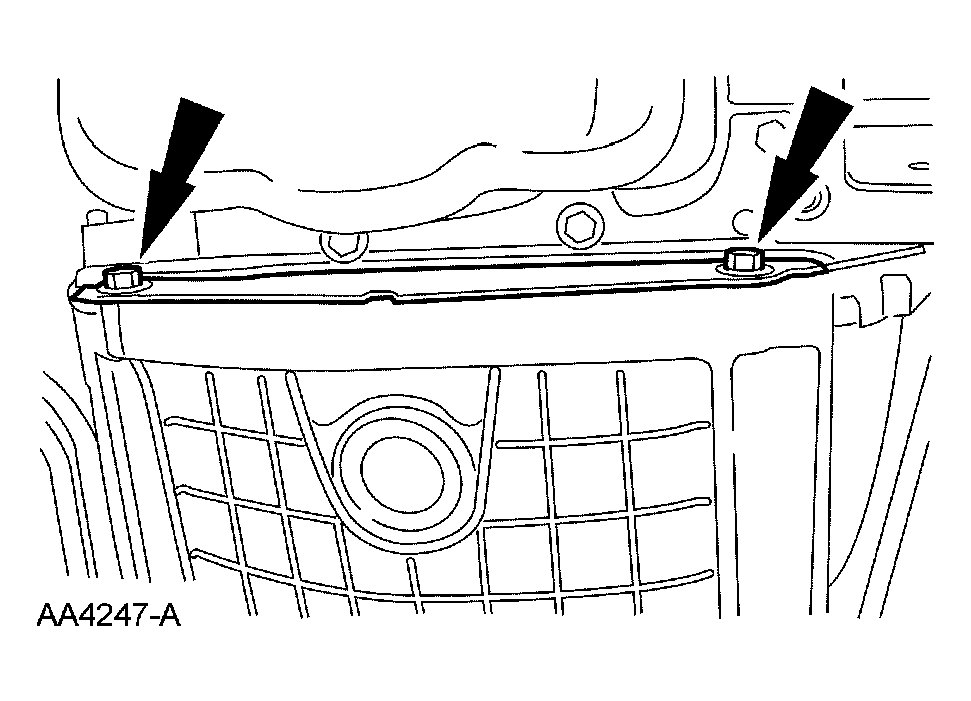

27. Remove the bolts and the flexplate inspection cover.
    Fig 19: Identifying Flexplate Inspection Cover Bolts

    Courtesy of FORD MOTOR CO.

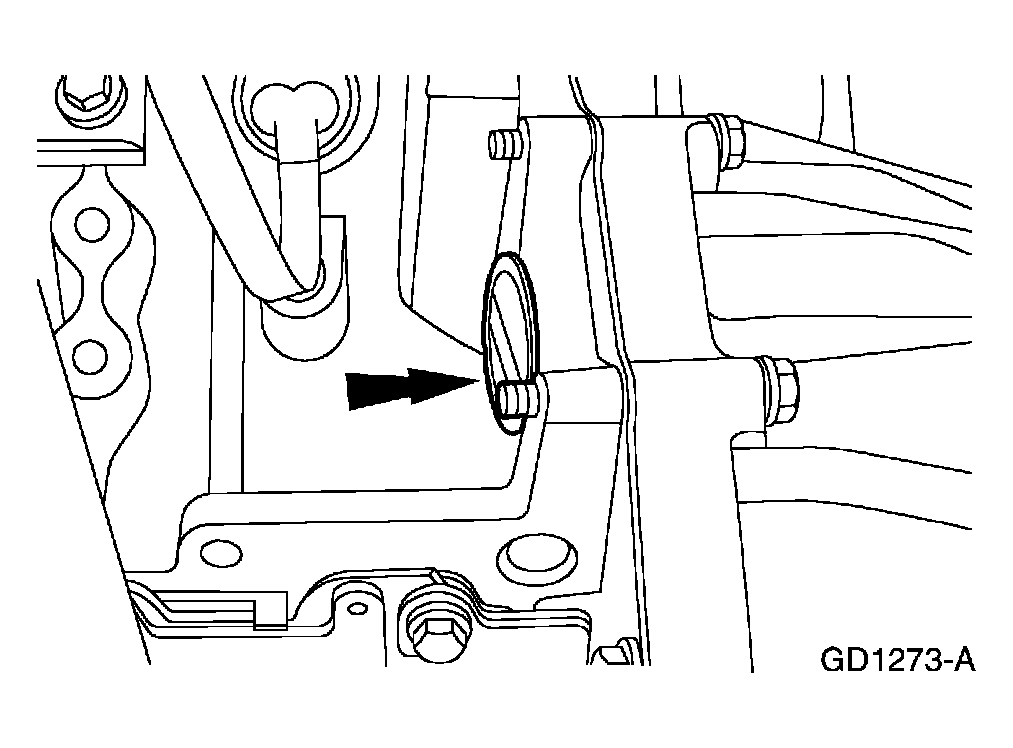

28. Remove the cylinder block opening cover.
    Fig 20: Identifying Access Plug

    Courtesy of FORD MOTOR CO.
29. Remove the torque converter-to-flexplate nuts.
    • Discard the nuts.
      Fig 21: Locating Torque Converter-To-Flexplate Nuts

      Courtesy of FORD MOTOR CO.
30. If equipped with a 4R70E or 4R75E automatic transmission, remove the 2 bolts, disconnect the shift cable and position the cable and bracket assembly aside.
    Fig 22: Locating Shift Cable End And Bracket

    Courtesy of FORD MOTOR CO.
NOTE: The upper 2 transmission-to-engine bolts will be removed later.
Fig 23: Identifying Lower Transmission-To-Engine Bolts
Courtesy of FORD MOTOR CO.
31. Remove the lower 5 transmission-to-engine bolts.
32. Disconnect the RH heated exhaust gas oxygen sensor (HO2S) electrical connector.
    Fig 24: Locating RH Heated Exhaust Gas Oxygen Sensor (HO2S) Electrical Connector

    Courtesy of FORD MOTOR CO.
33. Remove the 4 exhaust manifold flange nuts.
    Fig 25: Identifying Exhaust Manifold Flange Nuts

    Courtesy of FORD MOTOR CO.
CAUTION: Only use hand tools when removing the engine mount nut or damage to the engine mount can occur.
Fig 26: Locating RH Engine Mount Nut
Courtesy of FORD MOTOR CO.
34. Remove the RH engine mount nut.
CAUTION: Only use hand tools when removing the LH engine mount through bolt or damage to the cage nut can occur.
NOTE: If the LH engine mount through bolt nut is missing or damaged install a new nut using service part number W709375. If the LH engine mount through bolt nut cage is damaged or missing, remove the cage and install a new nut using service part number W520516-S301.
Fig 27: Locating LH Engine Mount Through Bolt
Courtesy of FORD MOTOR CO.
35. Remove the LH engine mount through bolt.
36. Remove the upper 2 transmission-to-engine bolts and install the special tool.
    Fig 28: Identifying Special Tool (303-F047)

    Courtesy of FORD MOTOR CO.
37. Using a suitable floor crane, remove the engine assembly from the vehicle.
