Reverse Clutch: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-281 (T94P-77000-D2)

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

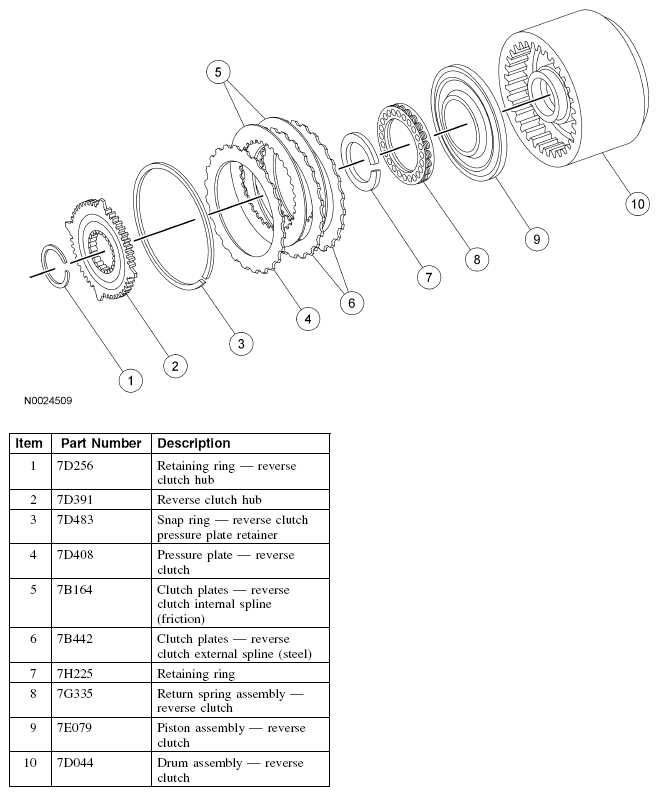

Fig 1: Identifying Reverse Clutch Components

Courtesy of FORD MOTOR CO.
