Engine Ignition Components - Exploded View

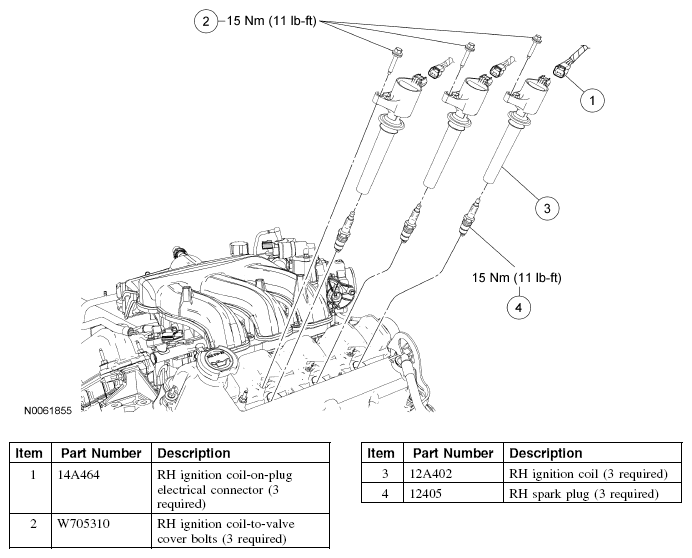

Engine Ignition - RH

Fig 1: Engine Ignition Components With Torque Specifications - Exploded View (Engine Ignition - RH)
G04619658Courtesy of FORD MOTOR CO.

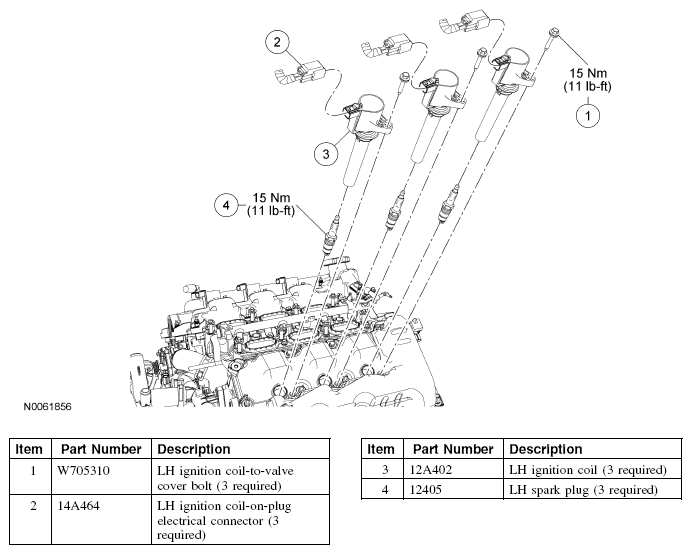

Engine Ignition - LH

Fig 2: Engine Ignition Components With Torque Specifications - Exploded View (Engine Ignition - LH)
G04619659Courtesy of FORD MOTOR CO.
