Home >> Ford >> 2006 >> Escape Base, 2.3 Z, FWD, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> In-Vehicle Repair >> Transaxle Support Insulator - LH >> Notes

Transaxle Support Insulator - LH: Notes

SPECIAL TOOL

G04620952Courtesy of FORD MOTOR CO.
 3-Bar Engine Support Kit
303-F072 or equivalent

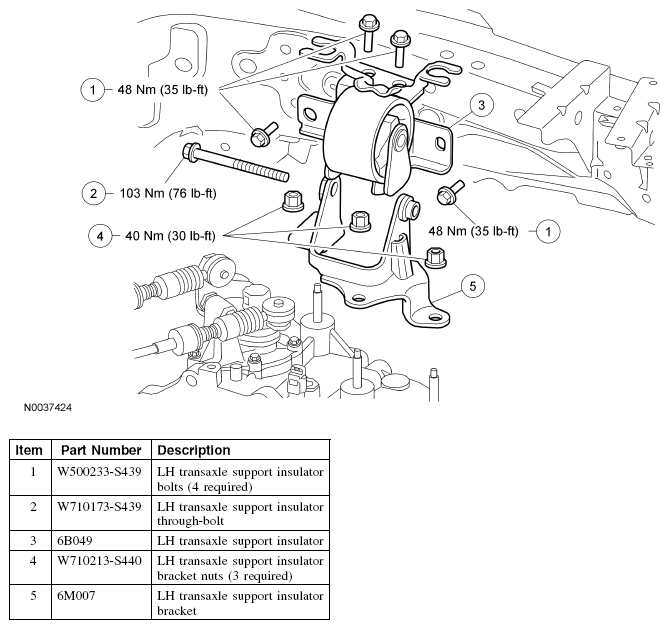

Fig 1: Transaxle Support Insulator -- LH Replacement Components With Torque Specifications
G04620953Courtesy of FORD MOTOR CO.
