Transaxle Front Support Insulator: Notes

SPECIAL TOOL

G04620955Courtesy of FORD MOTOR CO.
 3-Bar Engine Support Kit
303-F072 or equivalent

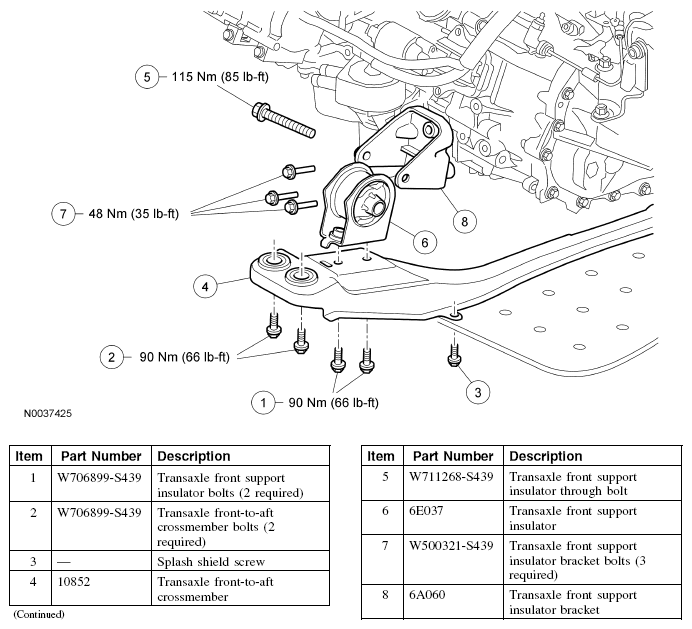

Fig 1: Transaxle Front Support Insulator Replacement Components With Torque Specifications
G04620956Courtesy of FORD MOTOR CO.
