Input Shaft: Notes

SPECIAL TOOL

G04620982Courtesy of FORD MOTOR CO.
 Input Bearing Installer
308-582 or equivalent
G04620983Courtesy of FORD MOTOR CO.
 Installer, Spindle/Axle Shaft
205-199 or equivalent
G04620984Courtesy of FORD MOTOR CO.
 Puller, Bearing
205-D064 or equivalent

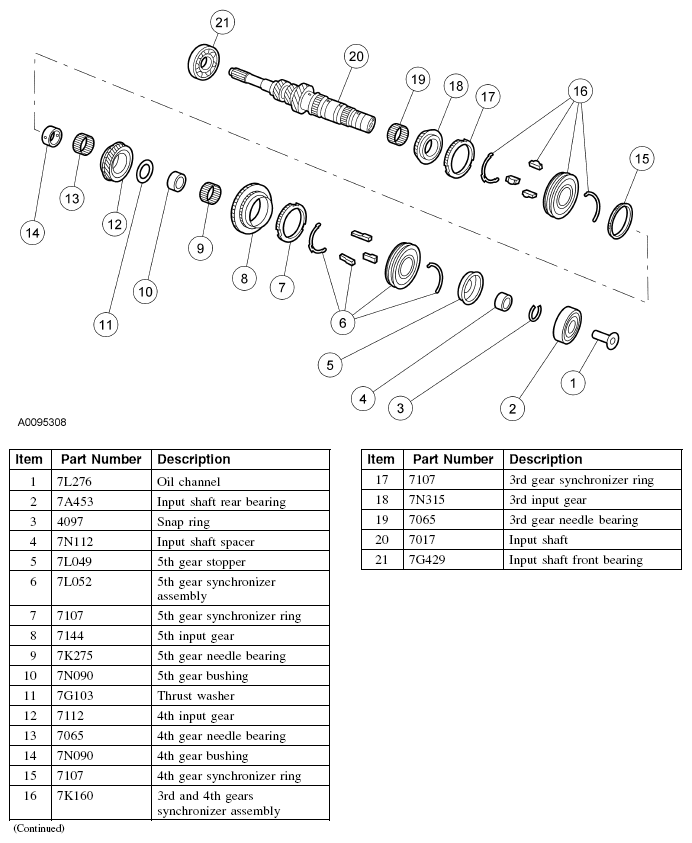

Fig 1: Identifying Input Shaft Components
G04620985Courtesy of FORD MOTOR CO.
