Differential - 4WD: Notes

SPECIAL TOOL

G04621055Courtesy of FORD MOTOR CO.
 2-Jaw Puller
205-D035 or equivalent
G04621056Courtesy of FORD MOTOR CO.
 Bearing Puller
205-D064 or equivalent
G04621057Courtesy of FORD MOTOR CO.
 Dial Indicator Gauge with Holding Fixture
100-D002 or equivalent

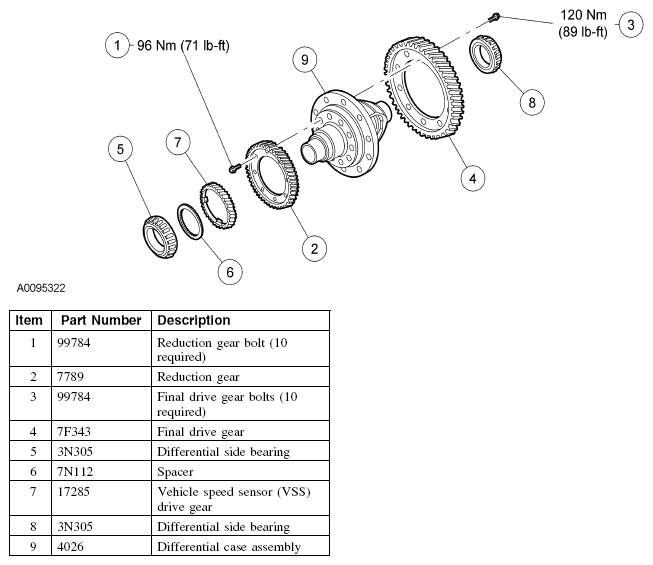

Fig 1: Identifying Differential - 4WD Components With Torque specifications
G04621058Courtesy of FORD MOTOR CO.
