Safety Belt Retractor - Front: Notes

SPECIAL TOOL(S) SPECIFICATIONS

G04622524
 Torx Bit, Safety Belt Bolt
501-010 (T77L-2100-A)
NOTE: Passenger side safety belt retractor shown, driver side similar.

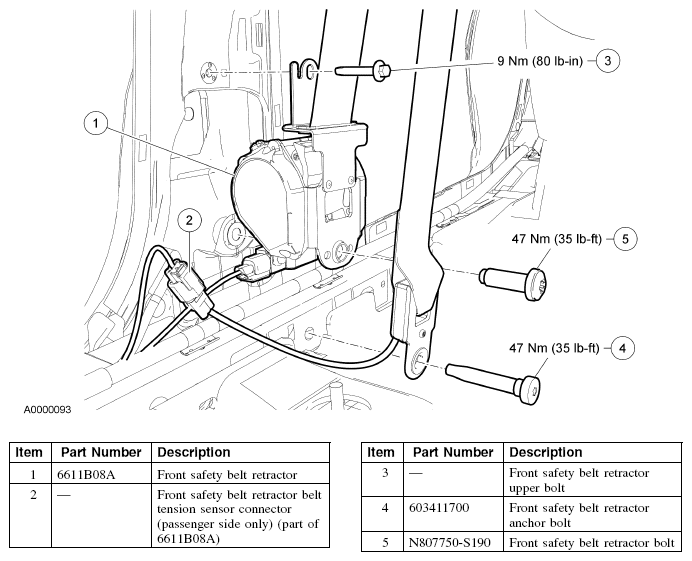

Fig 1: Safety Belt Retractor -- Front With Torque Specifications
G04622525Courtesy of FORD MOTOR CO.
