Child Safety Seat Tether Anchor: Notes

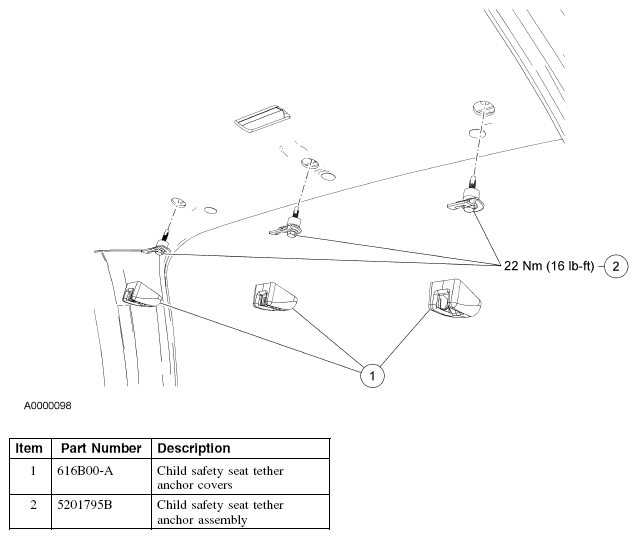

Fig 1: Child Safety Seat Tether Anchor With Torque Specifications
G04622522Courtesy of FORD MOTOR CO.
