Valve Spring Installed Length

NOTE: Refer to the appropriate engine article for the specification.
  1. Measure the installed length of each valve spring.

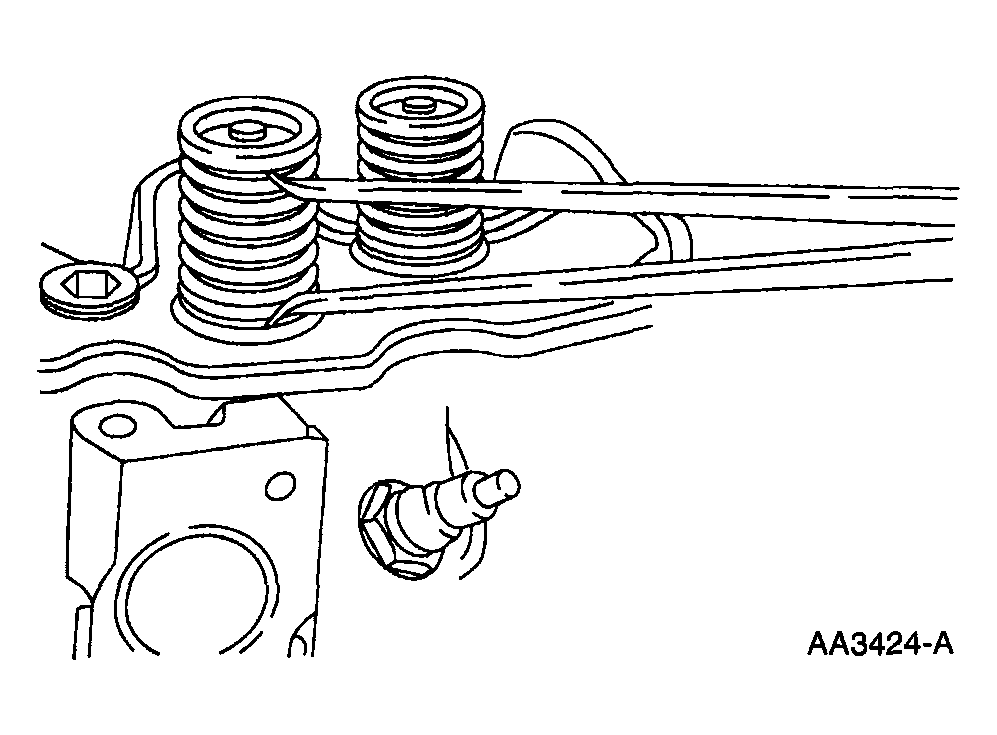

    2. Fig 1: Measuring Installed Length Of Each Valve Spring
    G04319069Courtesy of FORD MOTOR CO.
