Anti-Lock Brake System (ABS) Module: Notes

MATERIALS

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

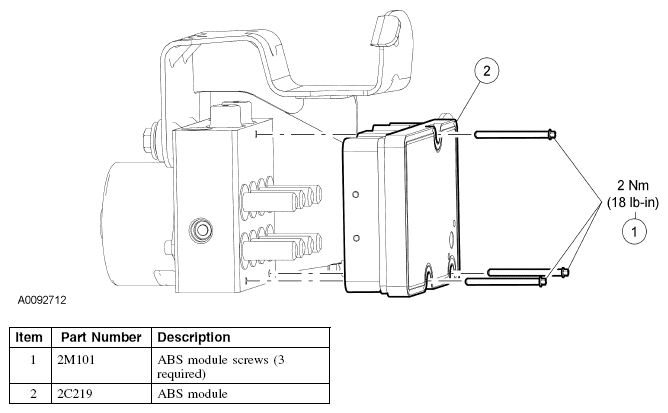

Fig 1: Anti-Lock Brake System (ABS) Module Replacement Components With Torque Specifications
G04617738Courtesy of FORD MOTOR CO.
