Main Control Cover: Installation

NOTE: The main control cover gasket is a reusable type. Inspect the gasket for damage. Install a new gasket as necessary.

Fig 1: Locating Main Control Cover Gasket

Courtesy of FORD MOTOR CO.

NOTE: Install studs in locations 3 and 11.

Install the main control cover.
- Tighten to 13 N.m (10 lb-ft), in the sequence shown.

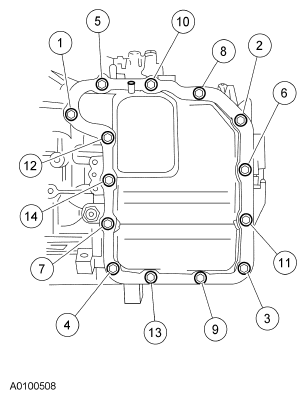

  Fig 2: Identifying Tightening Sequence Of Main Control Valve Body Bolts
  Courtesy of FORD MOTOR CO.
Position the transmission fluid cooler tube in place and install the bolt.
- Tighten to 25 N.m (18 lb-ft).

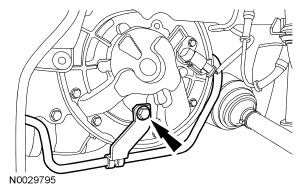

  Fig 3: Locating Transmission Fluid Cooler Tube Bracket Bolt
  Courtesy of FORD MOTOR CO.
Install the lower radiator hose.

Fig 4: Locating Lower Radiator Hose
Courtesy of FORD MOTOR CO.
Connect the vent hose to the main control cover.

Fig 5: Locating Vent Hose From Main Control Cover
Courtesy of FORD MOTOR CO.
Install the battery tray bracket.
- Tighten to 10 N.m (89 lb-in).

  Fig 6: Locating Battery Tray Bracket
  Courtesy of FORD MOTOR CO.
Connect the wiring harness to the battery tray bracket.

Fig 7: Locating Battery Tray Bracket & Wiring Harness
Courtesy of FORD MOTOR CO.
Install the battery tray. For additional information, refer to REMOVAL AND INSTALLATION .
Fill the transaxle with clean automatic transmission fluid.
Fill the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Start the engine, run through all of the gears and check the fluid level.
