Main Control Valve Body: Notes

SPECIAL TOOL(S) SPECIFICATION

G04620282Courtesy of FORD MOTOR CO.
 Alignment Pins, Valve Body
307-299 (T94P-77000-N)

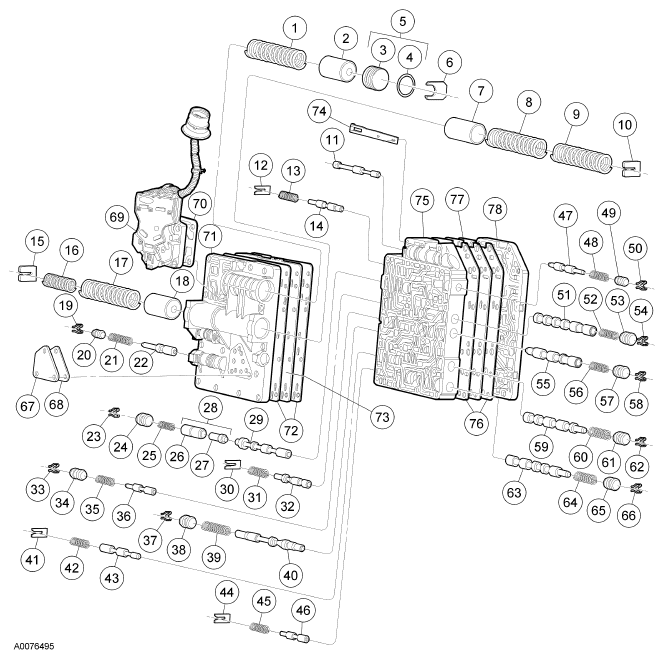

Fig 1: Exploded View Of Main Control Valve Body Components
G04620283Courtesy of FORD MOTOR CO.

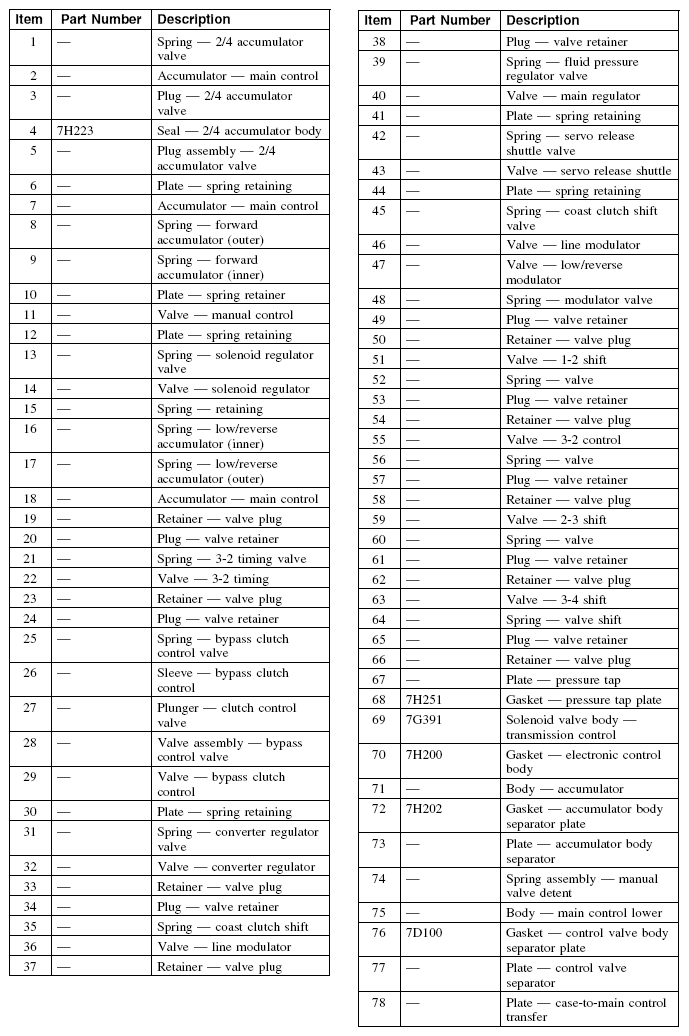

Fig 2: Main Control Valve Body Components Description Table
G04620284Courtesy of FORD MOTOR CO.
