Forward/Coast/Direct Clutches: Notes

SPECIAL TOOL(S) SPECIFICATION

Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Dial Indicator Gauge with Holding Fixture 100-D002 (D78P-4201-B)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-282 (T94P-77000-D3)
Courtesy of FORD MOTOR CO.	Remover, O-Ring Seal 100-010 (T71P-19703-C)

MATERIAL SPECIFICATION

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

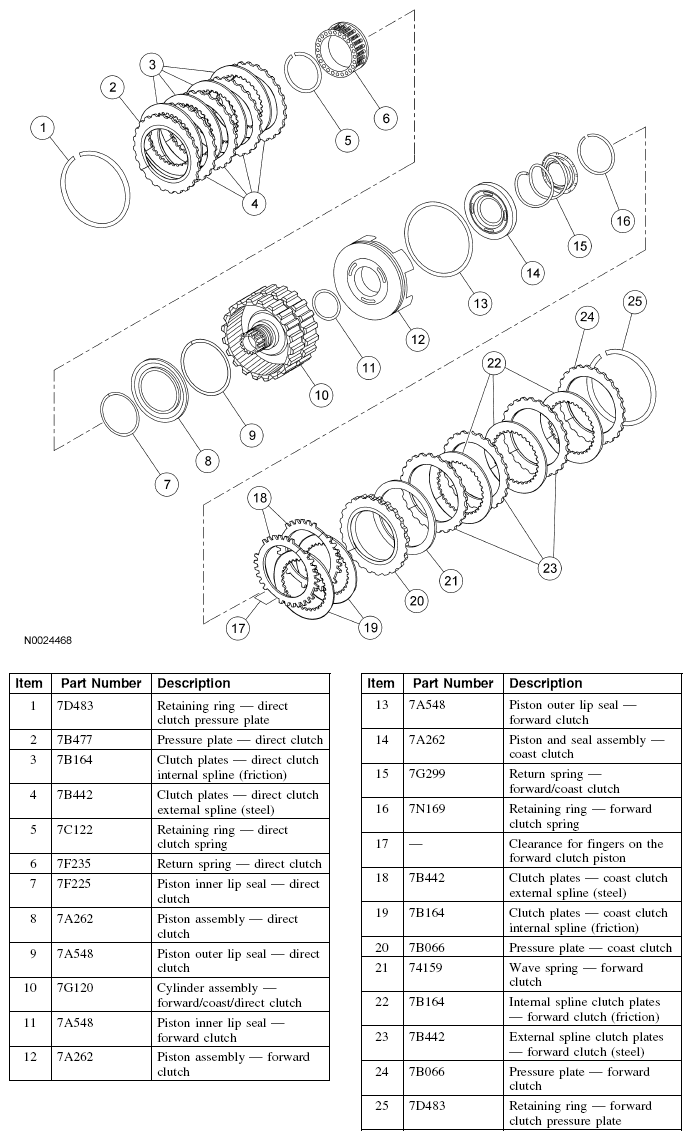

Fig 1: Exploded View Of Forward/Coast/Direct Clutches Components

Courtesy of FORD MOTOR CO.
