Automatic Transmission - Cd4E: Assembly: Transaxle: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-280 (T94P-77000-D1) (17-060-01)
Courtesy of FORD MOTOR CO.	Installer, Torque Converter Fluid Seal 307-273 (T94P-77000-C) (17-052)
Courtesy of FORD MOTOR CO.	Depth Micrometer 303-D026 (D80P-4201-A)
Courtesy of FORD MOTOR CO.	Shim Selection Gauge 307-300 (T94P-77000-Q) (17-055)
Courtesy of FORD MOTOR CO.	Shim Selection Depth Gauge 307-300-01 (T94P-77000-T) (17-055-01)
Courtesy of FORD MOTOR CO.	Installer, Halfshaft Output Fluid Seal 307-157 (T86P-1177-B)
Courtesy of FORD MOTOR CO.	Shim Selection Preload Plate 307-304 (T94P-77000-R1) (17-057)
Courtesy of FORD MOTOR CO.	Remover/Installer, Servo Cover 307-295 (T94P-77000-L)
Courtesy of FORD MOTOR CO.	Installer, Shift Shaft Fluid Seal 307-002 (TOOL-77288)
Courtesy of FORD MOTOR CO.	Selector, Servo Piston Rod 307-S296 (T94P-77000-M) (17-059)
Courtesy of FORD MOTOR CO.	Test Plate Screw Set, Transmission 307-126 (T82P-7006-C)
Courtesy of FORD MOTOR CO.	Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)
Courtesy of FORD MOTOR CO.	Adapter for 307-304 307-304-02 (T94P-77000-R3) (17-057-02)
Courtesy of FORD MOTOR CO.	Adapter for 307-304 307-304-03 (T94P-77000-R4)
Courtesy of FORD MOTOR CO.	Alignment Pins, Valve Body 307-299 (T94P-77700-N)
Courtesy of FORD MOTOR CO.	Aligner, Pump Housing 307-076 (T80L-77100-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-284 (T94P-77000-D5) (17-060-05)
Courtesy of FORD MOTOR CO.	Handle, Torque Converter 307-091 (T81P-7902-C)
Courtesy of FORD MOTOR CO.	Holding Fixture, Transmission 307-003 (T57L-500-B)
Courtesy of FORD MOTOR CO.	Holding Fixture, Transmission 307-288 (T94P-7700-F)
Courtesy of FORD MOTOR CO.	Installer, RH Halfshaft Fluid Seal 307-428
Courtesy of FORD MOTOR CO.	Adapter For 307-304 307-304-01 (T94P-77000-R2) (17-057-01)
Courtesy of FORD MOTOR CO.	Air Test Plate, Transmission 307-301 (T94P-77000-S) (17-056)
Courtesy of FORD MOTOR CO.	End Play Gauge, Transmission 307-519

MATERIAL

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®
Multi-Purpose Grease XG-4 and/or XL-5	ESB-M1C93-B

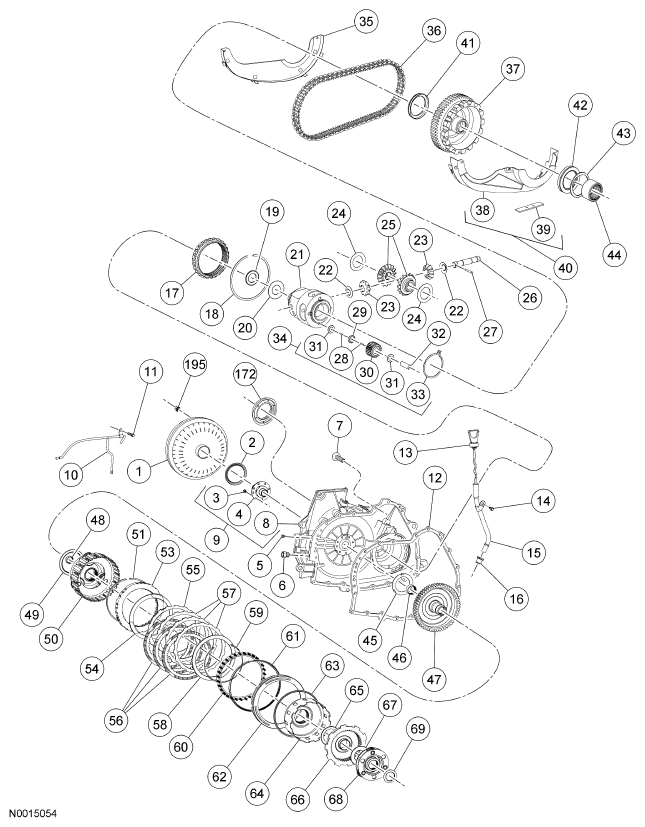

Fig 1: Disassembled View Of Automatic Transaxle Components (1 Of 3)

Courtesy of FORD MOTOR CO.

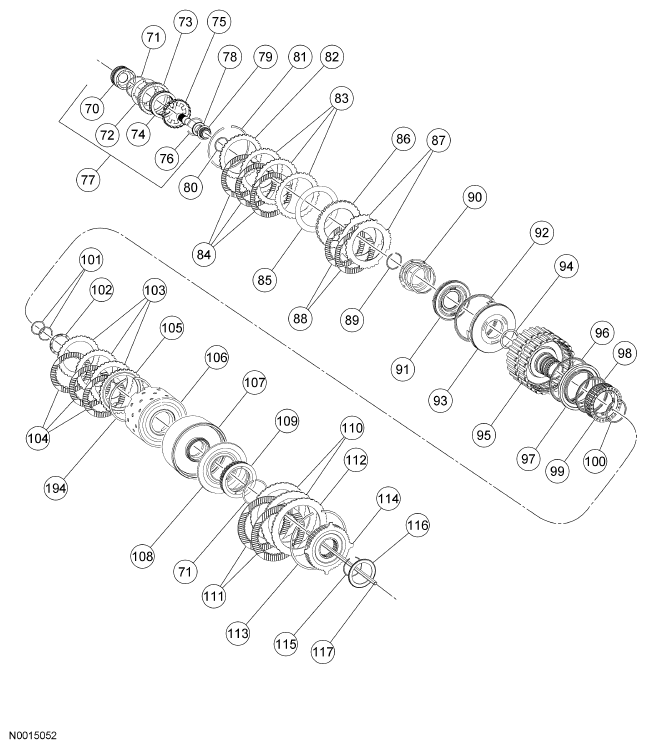

Fig 2: Disassembled View Of Automatic Transaxle Components (2 Of 3)

Courtesy of FORD MOTOR CO.

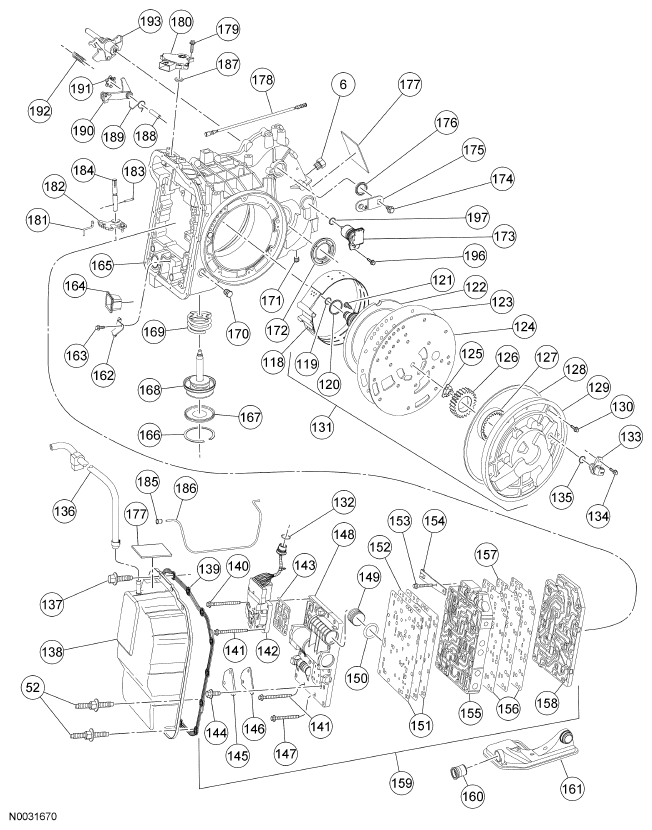

Fig 3: Disassembled View Of Automatic Transaxle Components (3 Of 3)

Courtesy of FORD MOTOR CO.

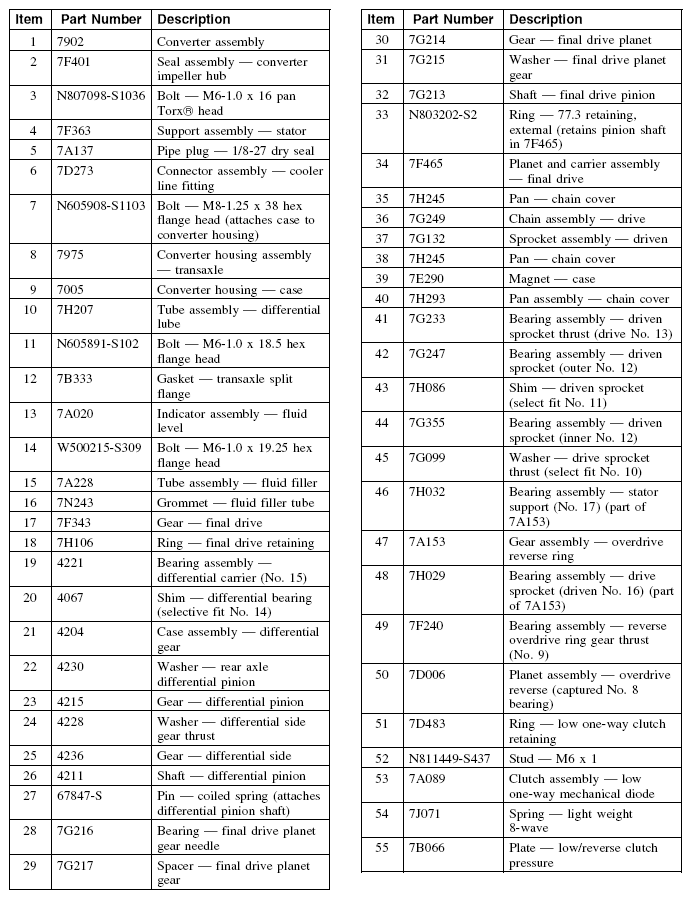

Fig 4: Automatic Transaxle Components Description Table (1 Of 4)

Courtesy of FORD MOTOR CO.

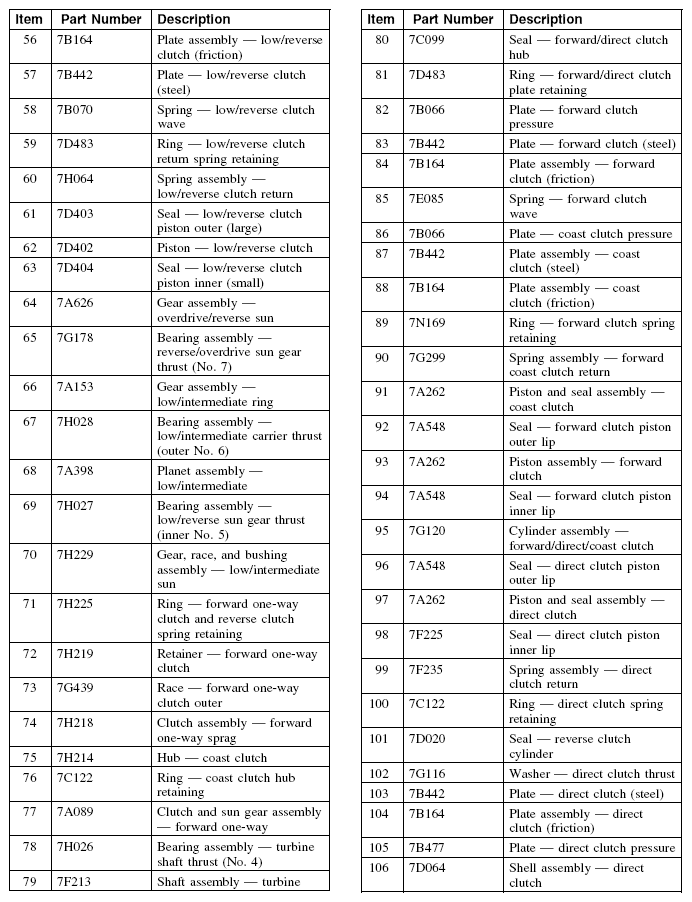

Fig 5: Automatic Transaxle Components Description Table (2 Of 4)

Courtesy of FORD MOTOR CO.

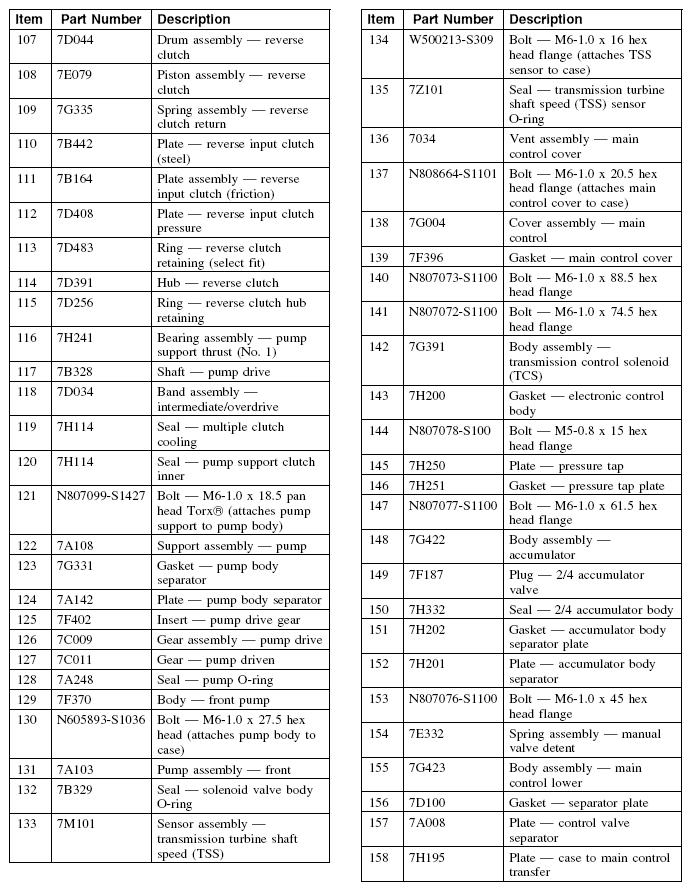

Fig 6: Automatic Transaxle Components Description Table (3 Of 4)

Courtesy of FORD MOTOR CO.

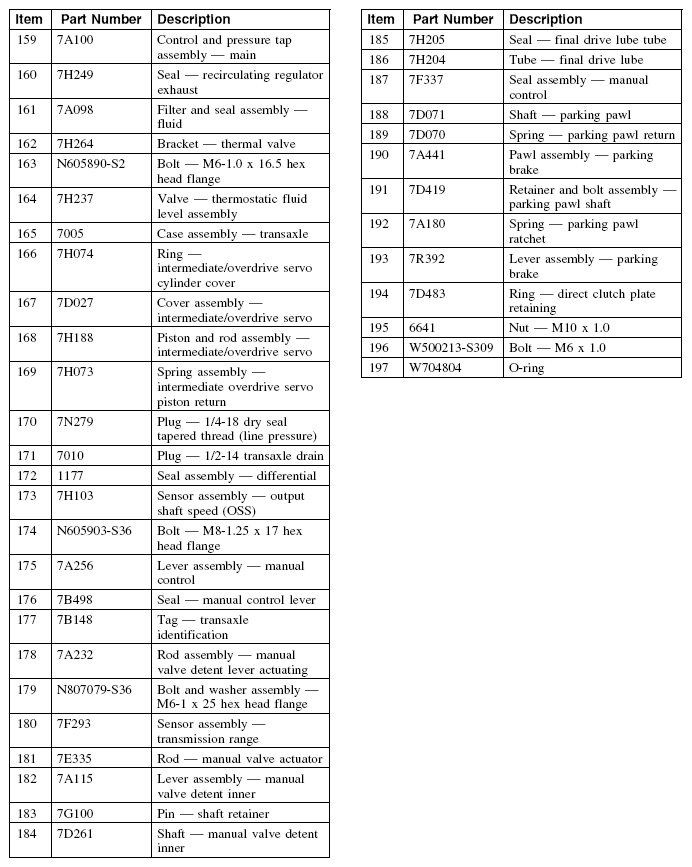

Fig 7: Automatic Transaxle Components Description Table (4 Of 4)

Courtesy of FORD MOTOR CO.
