Steering Linkage - Exploded View
Steering Linkage - Exploded View

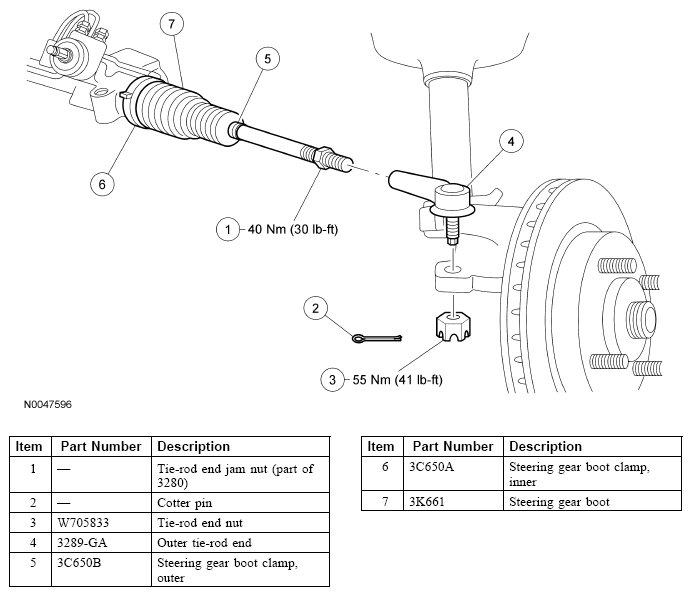

Fig 1: Exploded View Of Steering Linkage Components
Courtesy of FORD MOTOR CO.
For additional information, refer to
SUSPENSION SYSTEM-GENERAL INFORMATION
.
