Accelerometer - Hybrid: Notes

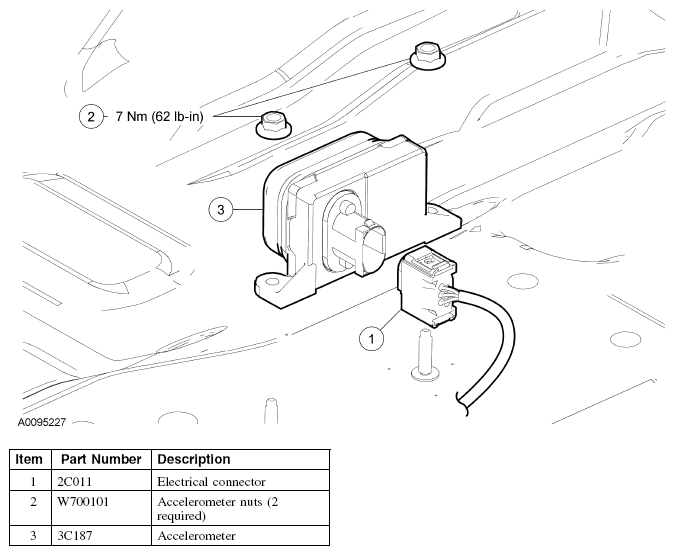

Fig 1: Accelerometer Replacement Components - Hybrid With Torque Specifications
G04617748Courtesy of FORD MOTOR CO.
