Home >> Ford >> 2006 >> Escape Base, 2.3 Z, FWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows And Glass >> Removal And Installation >> Window Glass - Liftgate >> Notes

Window Glass - Liftgate: Notes

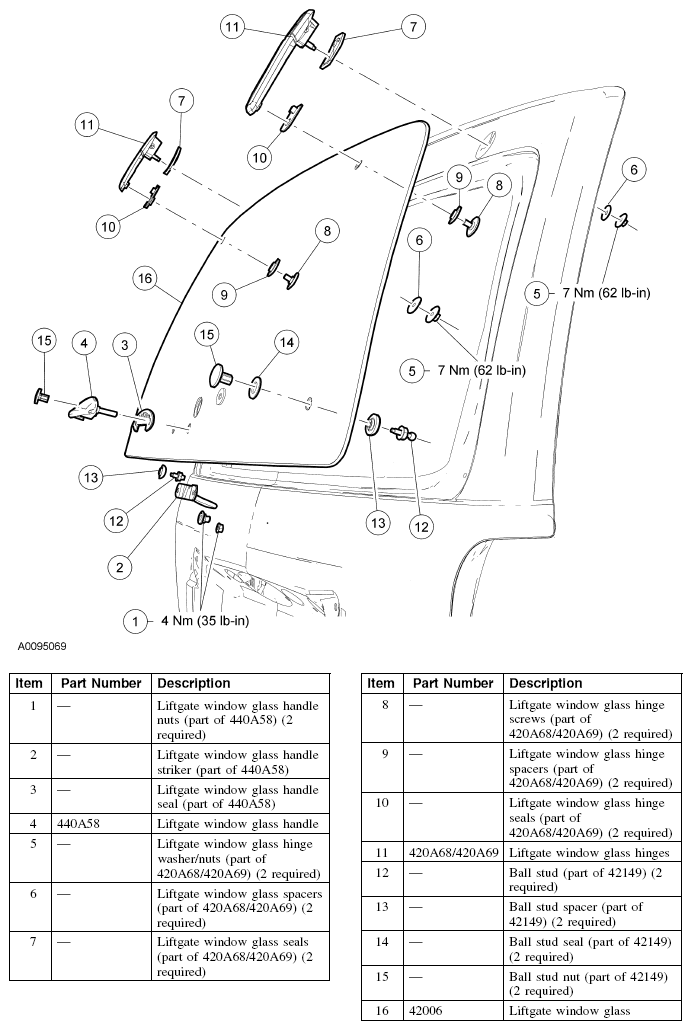

Fig 1: Locating Window Glass Components - Liftgate (With Torque Specifications

G04622360

Courtesy of FORD MOTOR CO.
