Solenoid Body: Notes

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP	MERCON® SP

Upper, Lower, Accumulator and Solenoid Body, Disassembled View

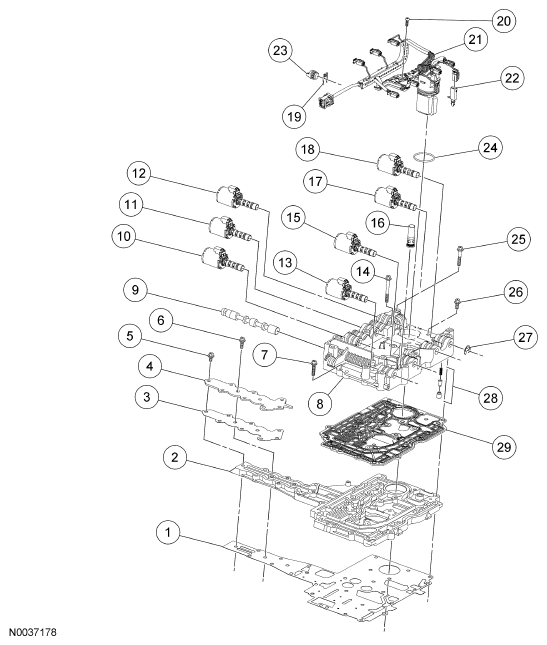

Fig 1: Disassembled View Of Upper, Lower, Accumulator And Solenoid Body

Courtesy of FORD MOTOR CO.

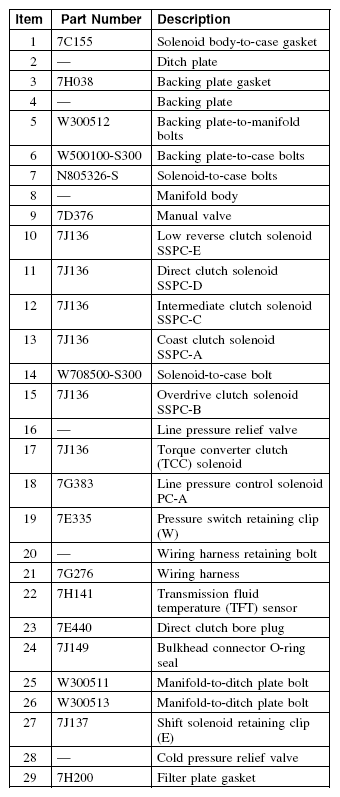

Fig 2: Solenoid Body Components Body Description Chart

Courtesy of FORD MOTOR CO.
