Forward GEARTRAIN - Assembly: Assembly

Install the forward clutch assembly into the direct clutch assembly.

Fig 1: Identifying Forward Clutch Assembly Into Direct Clutch Assembly
Courtesy of FORD MOTOR CO.
Install the No. 9 forward clutch bearing.

Fig 2: Locating Forward Clutch Bearing
Courtesy of FORD MOTOR CO.
Install the forward hub and ring gear assembly.

Fig 3: Locating Forward Hub And Ring Gear Assembly
Courtesy of FORD MOTOR CO.
Install the planet carrier and bearing assembly.

Fig 4: Locating Planet Carrier And Bearing Assembly
Courtesy of FORD MOTOR CO.
Install the No. 12 thrust bearing onto the forward carrier assembly.

Fig 5: Locating Thrust Bearing Onto Forward Carrier Assembly
Courtesy of FORD MOTOR CO.
Install the input shell assembly.
- Make sure the tab is engaged in the forward clutch assembly.

  Fig 6: Locating Clutch Tab
  Courtesy of FORD MOTOR CO.

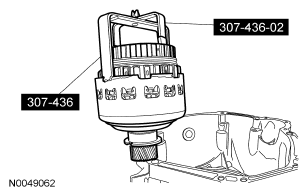

Install the special tools. Position aside to use during transmission assembly.

Fig 7: Positioning Of Transmission Assembly Using Special Tools
