Forward Clutch Assembly: Disassembly

NOTE: Soak all friction clutch plates in clean automatic transmission fluid.

Remove and discard the 2 seals and remove the No. 7 thrust washer.

Fig 1: Identifying Seals And Thrust Washer
Courtesy of FORD MOTOR CO.
Remove the No. 8 forward clutch thrust bearing.

Fig 2: Identifying Forward Clutch Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the snap ring and the forward clutch plates.

Fig 3: Locating Snap Ring And Forward Clutch Plates
Courtesy of FORD MOTOR CO.

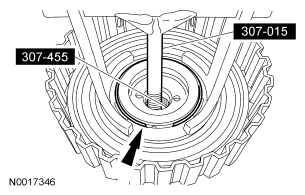

Using the special tools, remove the snap ring.

Fig 4: Removing Snap Ring Using Special Tools
Courtesy of FORD MOTOR CO.

NOTE: Note the orientation of the return spring.

Fig 5: Locating Forward Clutch Balance Piston Return Spring

Courtesy of FORD MOTOR CO.

Remove the forward clutch balance piston and the return spring. Discard the forward clutch balance piston.
Remove and discard the forward clutch piston.

Fig 6: Locating Forward Clutch Piston
Courtesy of FORD MOTOR CO.
Clean and inspect all components for damage.
