Toe Adjustment

Start the engine and center the steering wheel.
Turn the engine off and, using a suitable steering wheel holding device, lock the steering wheel in the straight-ahead position.
Loosen the steering linkage adjusting sleeve nuts.

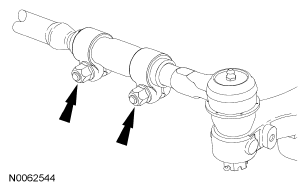

Fig 1: Locating Steering Linkage Adjusting Sleeve Nuts
Courtesy of FORD MOTOR CO.
Rotate the adjusting sleeves to obtain the correct toe setting.
Position both adjusting sleeve clamp openings downward within 45 degrees of vertical. Tighten the nuts to 55 Nm (41 lb-ft).

Fig 2: Identifying Position Adjusting Sleeve Clamp
Courtesy of FORD MOTOR CO.
Verify the toe settings and adjust as necessary.
