Selector Lever: Installation

WARNING: This page is about a different car, the 2006 Mercury Mountaineer and 2006 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Install the selector lever housing.
- Tighten to 12 Nm (9 lb-ft).

  Fig 1: Locating Selector Lever Housing
Connect the wiring harness to the selector lever housing.

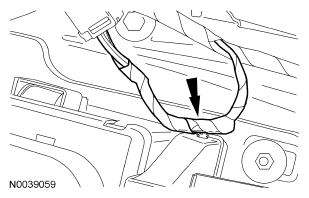

Fig 2: Locating Selector Lever Housing Wiring Harness
Connect the electrical connector.

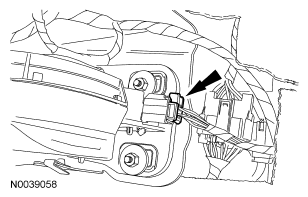

Fig 3: Locating Electrical Connector
Install the selector lever cable onto the selector lever housing.

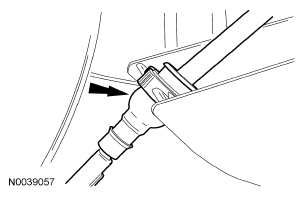

Fig 4: Locating Selector Lever Housing
Connect the selector lever cable onto the selector lever.

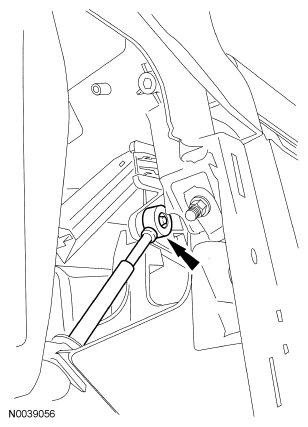

Fig 5: Locating Selector Lever Cable Onto Selector Lever
Install the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
