WARNING: This page is about a different car, the 2006 Mercury Mountaineer and 2006 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

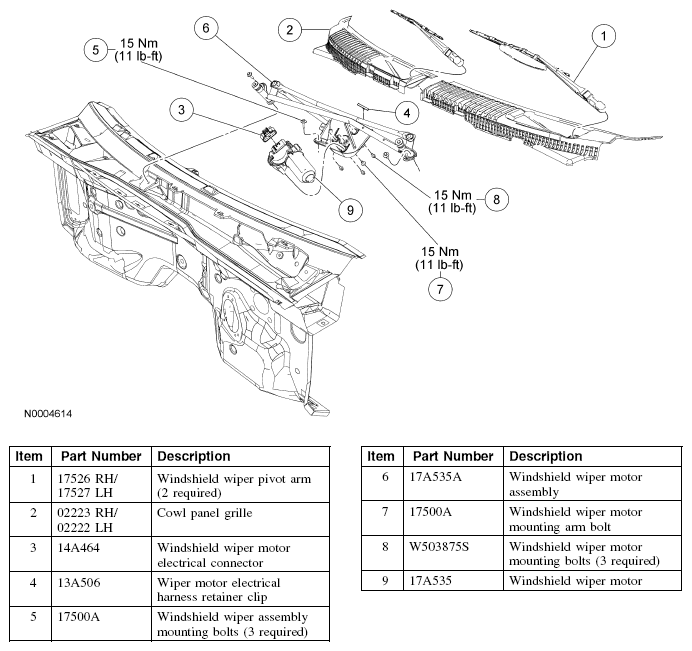

Fig 1: Wiper And Washer System - Exploded View, Front With Torque Specifications
For additional information, refer to the appropriate procedure.
