Steering Gear: Notes

WARNING: This page is about a different car, the 2006 Mercury Mountaineer and 2006 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS REFERENCE

G04637818Courtesy of FORD MOTOR CO.
C-Frame and Screw
211-023 (T74P-3044-A1)

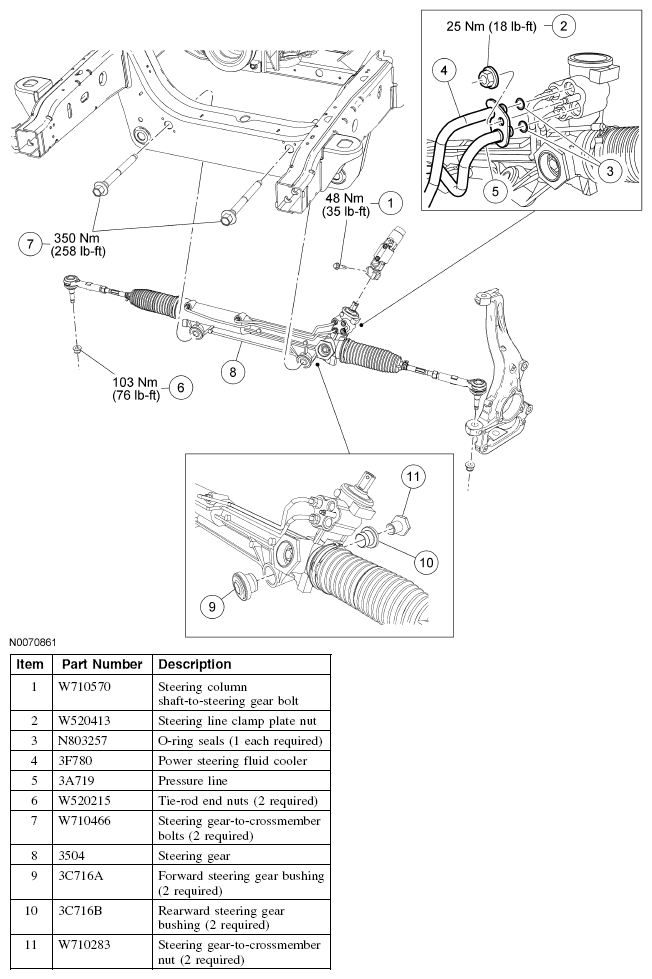

Fig 1: Steering Gear Replacement Components With Torque Specifications
G04637819Courtesy of FORD MOTOR CO.
