Suction Accumulator: Notes

WARNING: This page is about a different car, the 2006 Mercury Mountaineer and 2006 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

ITEM SPECIFICATION

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

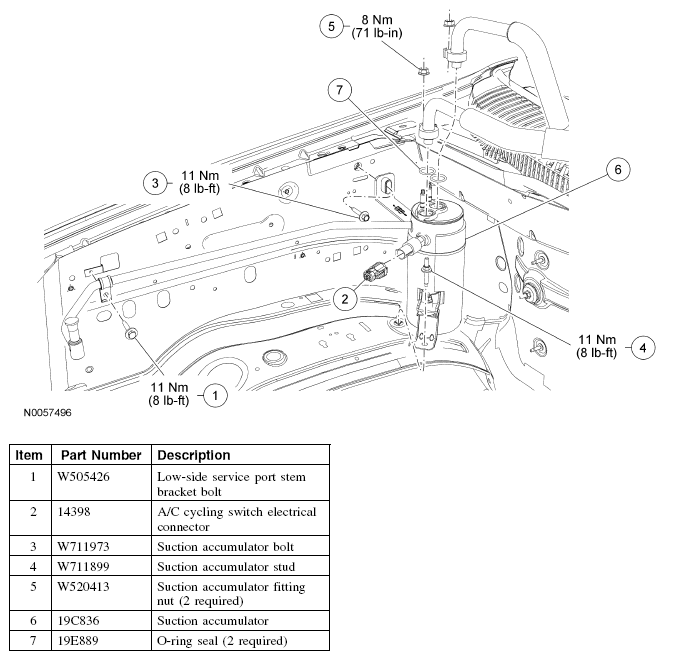

Fig 1: Suction Accumulator Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
