Instrument Panel - Exploded View
Instrument Panel - Exploded View

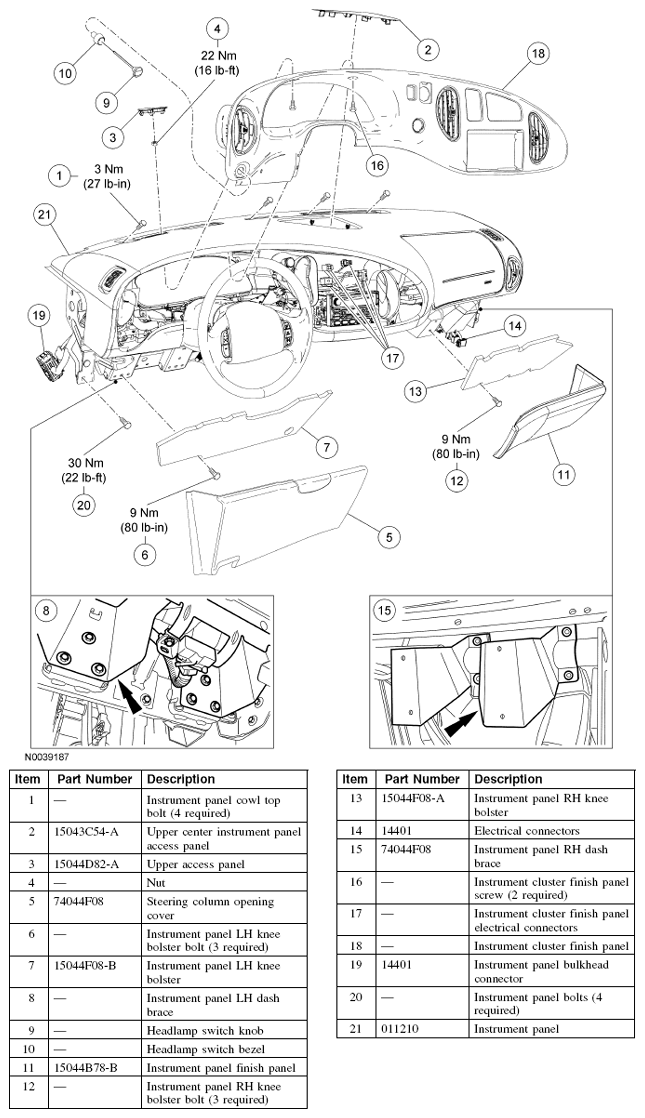

Fig 1: Instrument Panel - Exploded View With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedures.
Courtesy of FORD MOTOR CO.
