Auxiliary Relay Box 2

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

NOTE: Vehicle with stripped chassis are not equipped with auxiliary relay box 2.

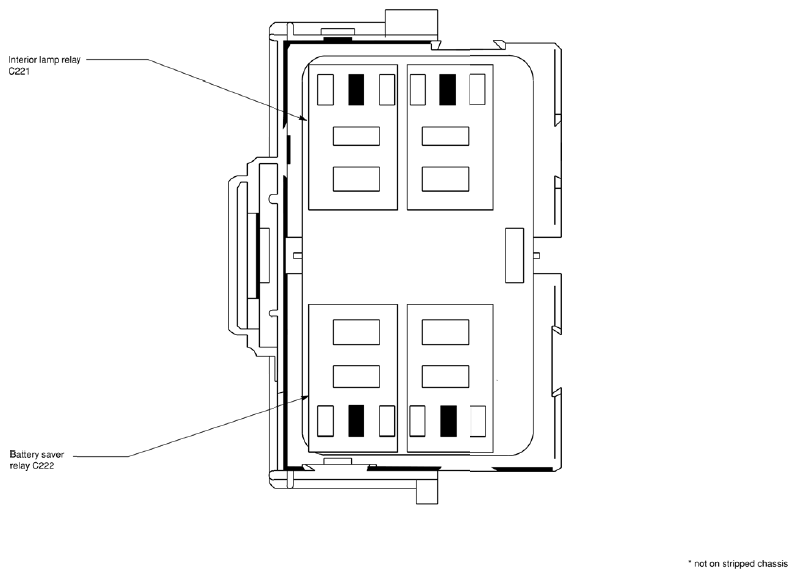

Fig 1: Auxiliary Relay Box 2 Components

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 2 RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C222	Battery saver relay
C221	Interior lamp relay
