Auxiliary Relay Box 1

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

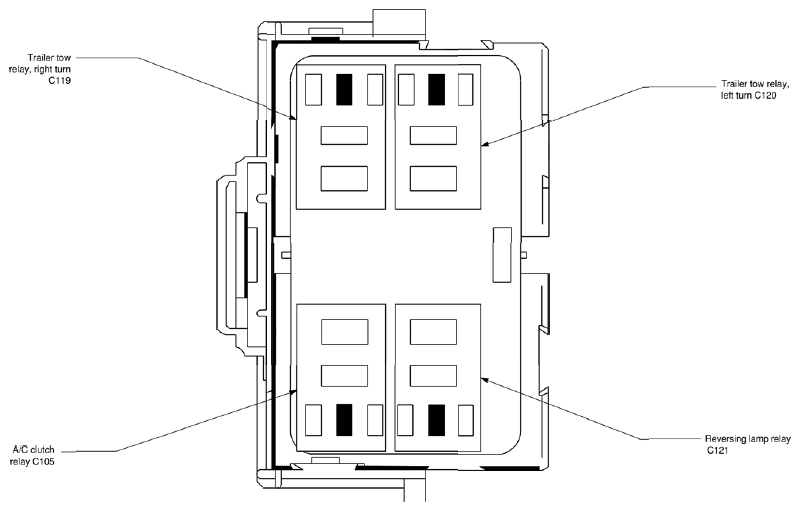

Fig 1: Auxiliary Relay Box 1 Components
G05909953Courtesy of FORD MOTOR CO.
AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
C105 A/C clutch relay
C119 Trailer tow relay, right turn
C120 Trailer tow relay, left turn
C121 Reversing lamp relay
