Engine Mechanical
>>
Mechanical
>>
Engine - 6.8L
>>
Disassembly And Assembly Of Subassemblies
>>
Intake Manifold Assembly
>>
Notes
Intake Manifold Assembly: Notes
MATERIAL SPECIFICATIONS
Item
Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent
WSS-M2C930-A

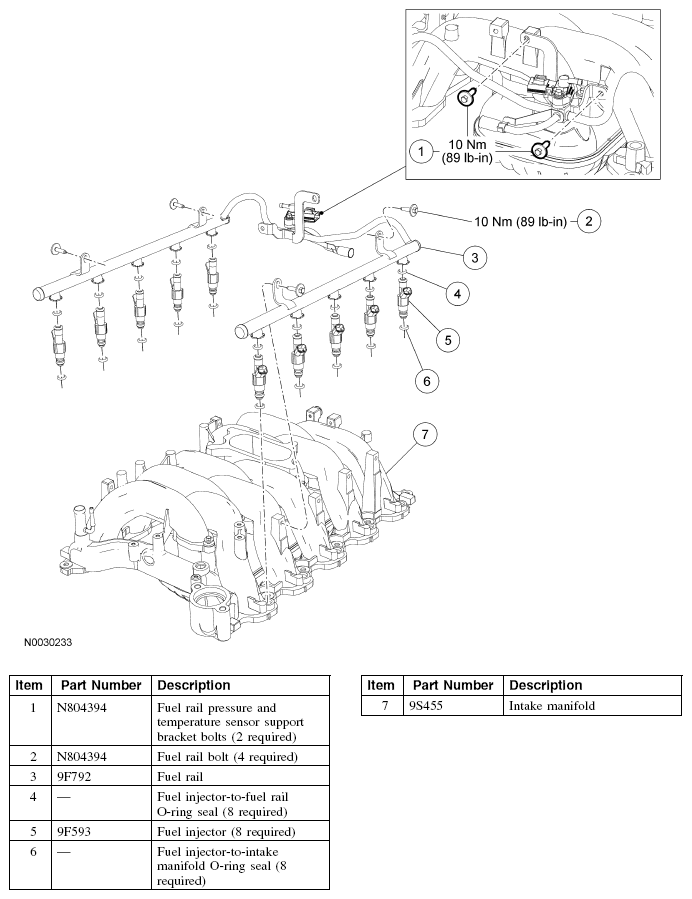

Fig 1: Identifying Intake Manifold Assembly Components With Torque specifications
Courtesy of FORD MOTOR CO.
