Steering Column Shaft: Notes
NOTE:
Non-commercial chassis shown, commercial chassis similar.

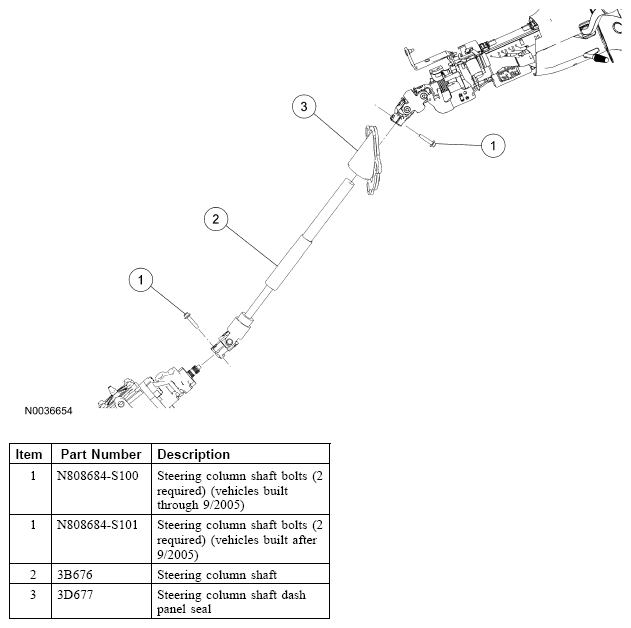

Fig 1: Identifying Steering Column Shaft Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
