Power seat switch, left: Schematic

WARNING: This page is about a different car, the 2006 Mercury Mountaineer and 2006 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

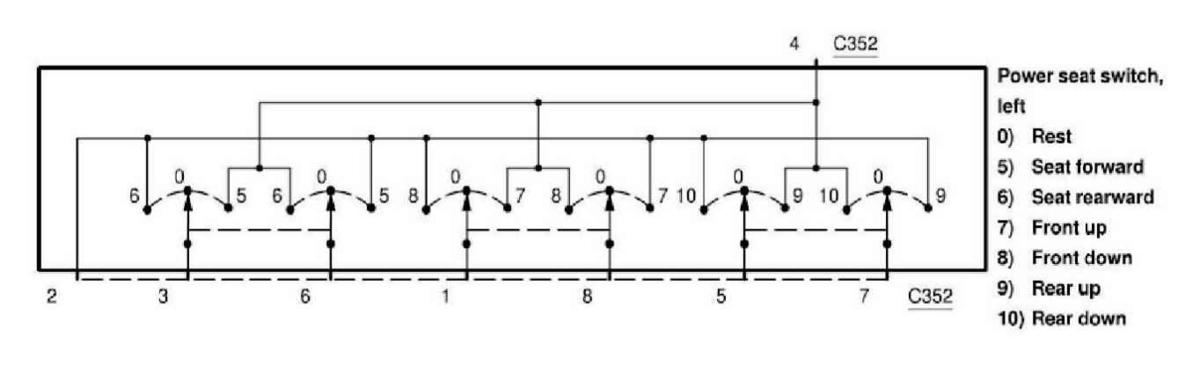

Fig 1: Schematic Diagram - Power Seat Switch, Left
G04596517Courtesy of FORD MOTOR CO.
