Home >> Ford >> 2006 >> Cutaway 6.0 P >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Vehicle Dynamic Systems >> Removal And Installation >> Steering Wheel Angle/Rotation Sensor >> Notes

Steering Wheel Angle/Rotation Sensor: Notes

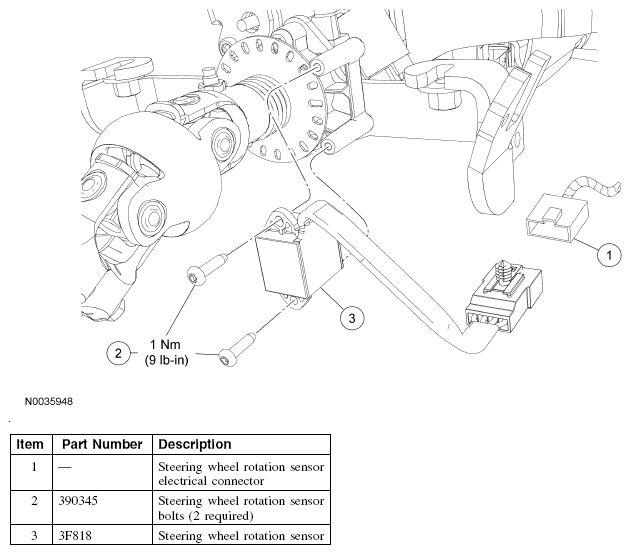

Fig 1: Steering Wheel Angle/Rotation Sensor Replacement Components With Torque Specifications

G04610889

Courtesy of FORD MOTOR CO.
