1-2 Accumulator: Removal

    WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
  1. Drain the transmission fluid and remove the transmission fluid pan and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  2. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.
    Fig 1: Locating Accumulator Piston Retaining Ring
    G03888654Courtesy of FORD MOTOR CO.
    3. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.
  3. Remove the 1-2 accumulator.
    1. Remove the 1-2 accumulator cover.
    2. Remove the inner and outer lower 1-2 accumulator spring.
    3. Remove the accumulator piston.
    4. Remove the upper 1-2 accumulator spring.

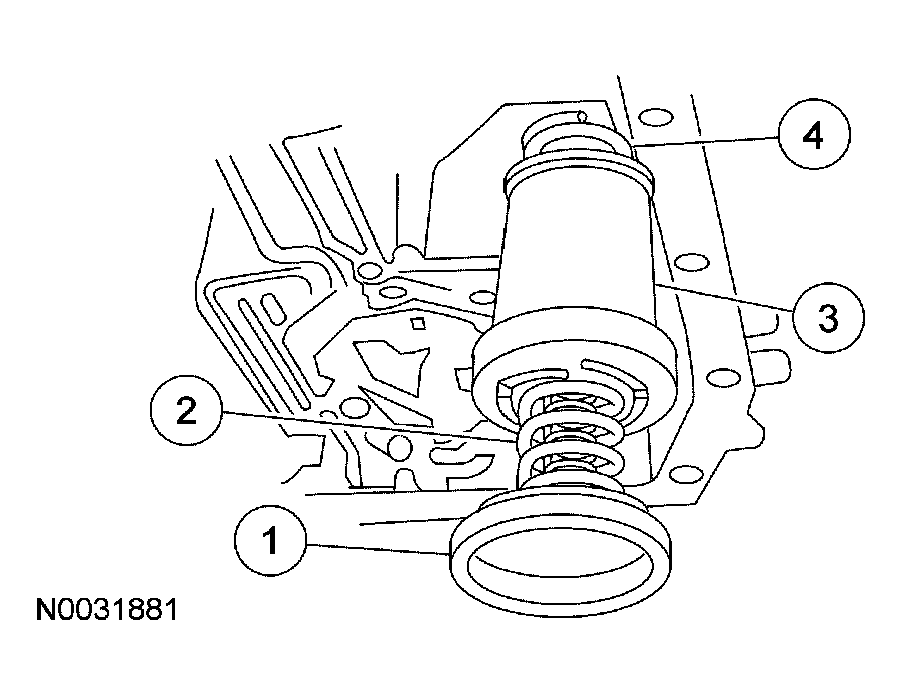

      Fig 2: Removing Upper 1-2 Accumulator Spring
      G04584405Courtesy of FORD MOTOR CO.
