Reverse Sun Gear: Disassembly

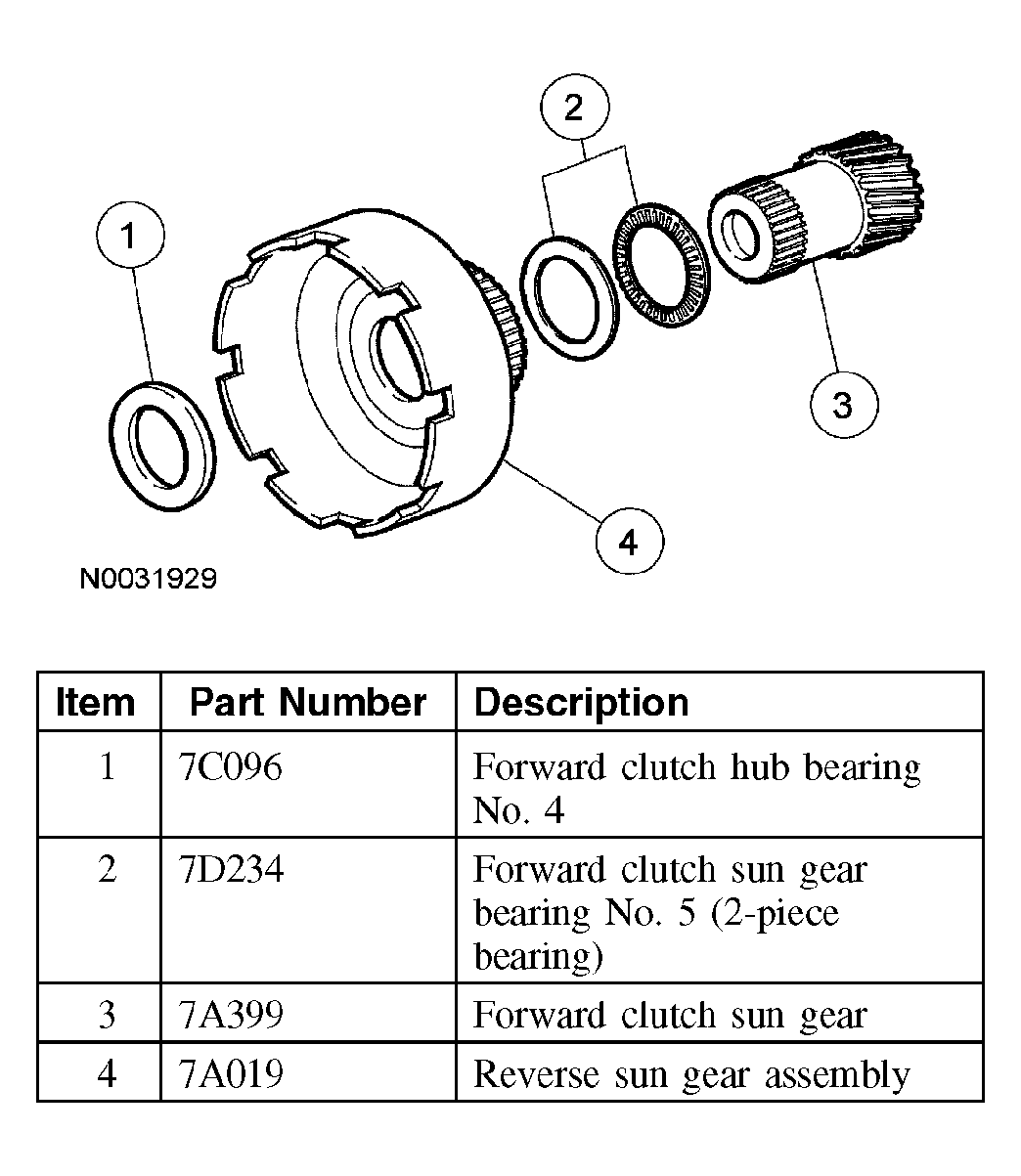

Fig 1: Disassembling\Assembling Reverse Sun Gear
G04584629Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.

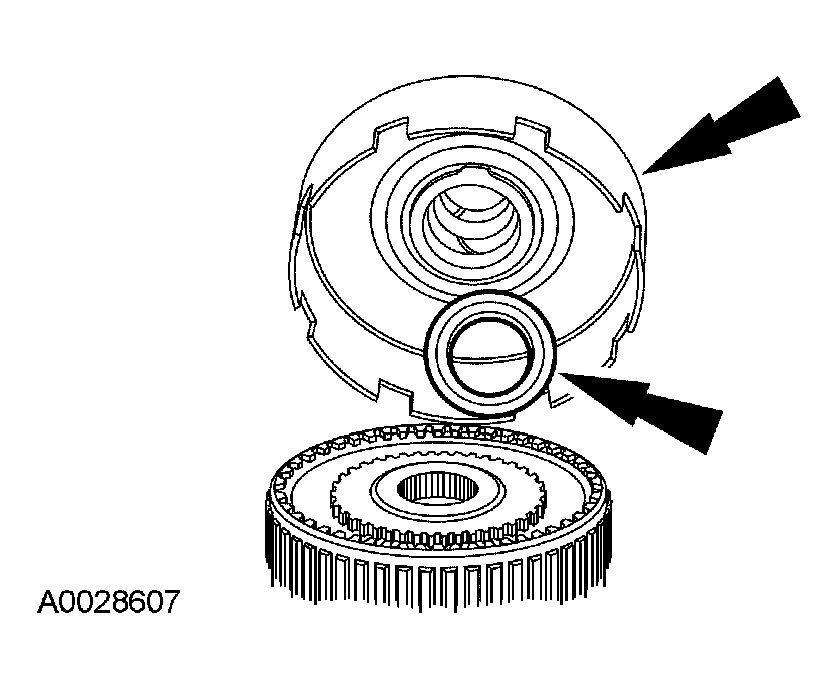

    Fig 2: Removing Reverse Clutch Sun Gear Assembly And No. 4 Forward Clutch Hub Bearing And Race
    G04584630Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.

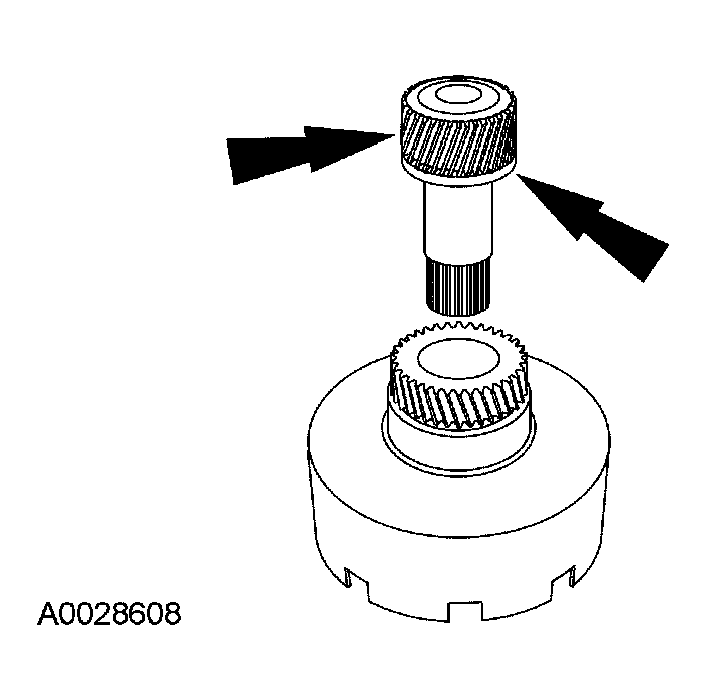

    Fig 3: Removing Forward Clutch Sun Gear Assembly And No. 5 Forward Clutch Sun Gear Bearing And Race
    G04584631Courtesy of FORD MOTOR CO.
