Planetary Gear Support Assembly and Planetary One-Way Clutch: Notes

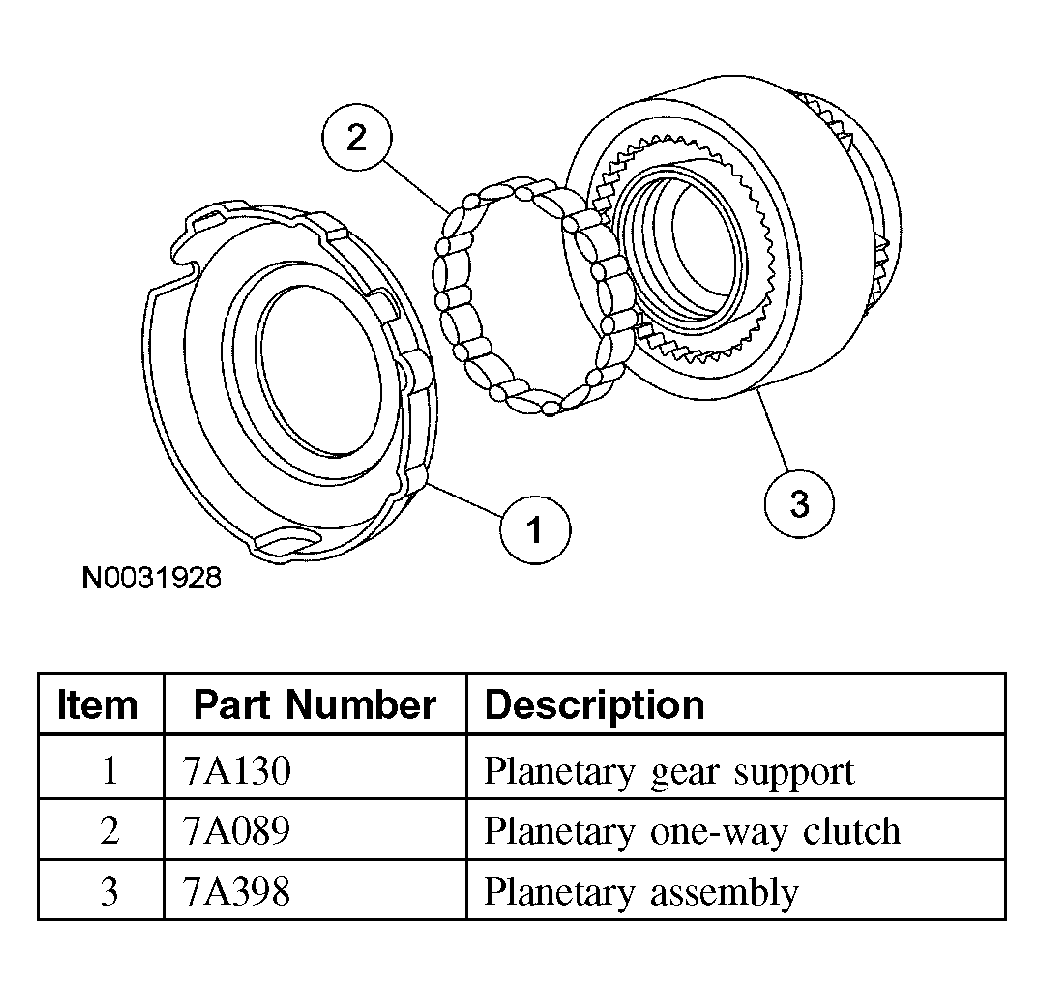

Fig 1: Disassembling\Assembling Planetary Gear Support Assembly And Planetary One Way Clutch

G04584626

Courtesy of FORD MOTOR CO.
