Emergency Flasher Relay Block

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

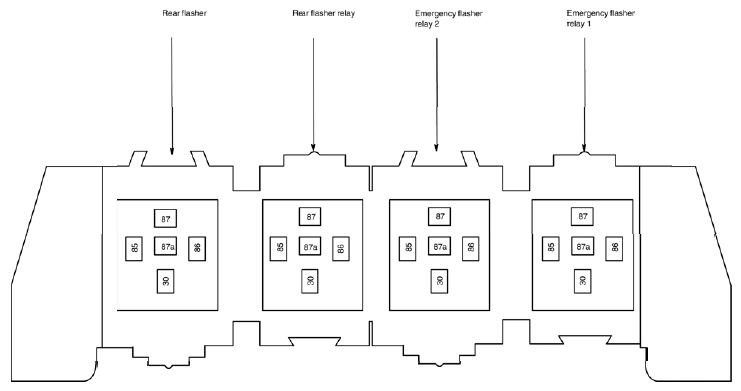

Fig 1: Emergency Flasher Relay Block Components
G05909948Courtesy of FORD MOTOR CO.
EMERGENCY FLASHER RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear flasher relay
Emergency flasher relay 2
Emergency flasher relay 1
