Combination Fluid Cooler: Installation

Install the cooler.
1. Position the cooler on the retainers.
2. Install the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

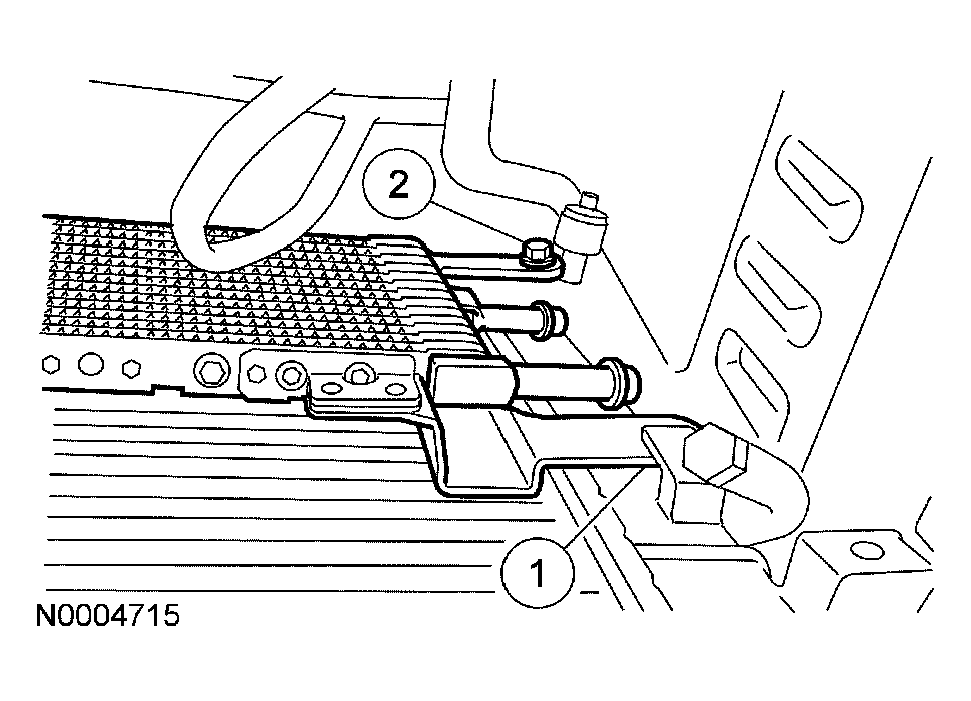

  Fig 1: Installing Cooler
  Courtesy of FORD MOTOR CO.
Position new hose clamps on the 6 hoses.
Remove the plugs from the 6 hoses and the cooler. Connect the 6 hoses to the cooler.

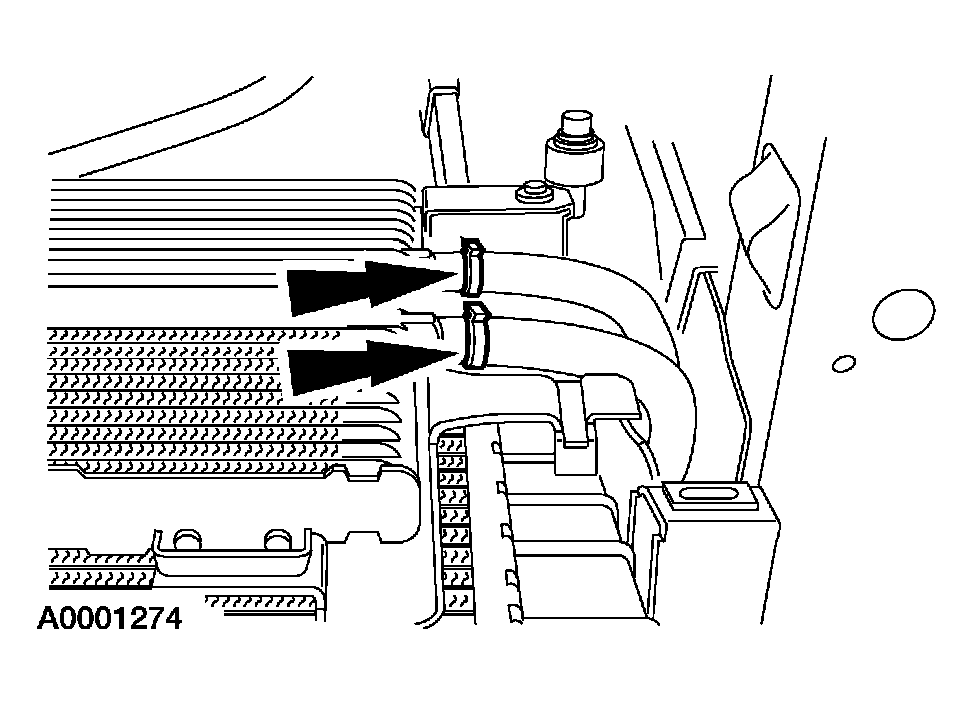

Fig 2: Locating Cooler Hose Clamps
Courtesy of FORD MOTOR CO.
Using the special tool, tighten the 6 hose clamps.

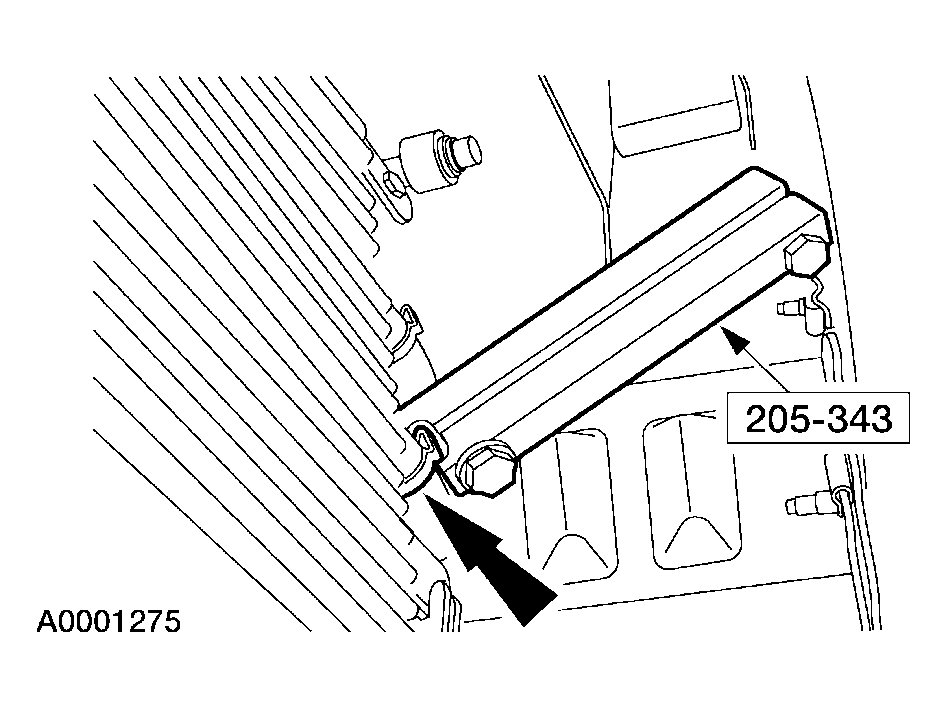

Fig 3: Tightening Hose Clamps Using Special Tool
Courtesy of FORD MOTOR CO.
Install the A/C condenser. For additional information, refer to AIR CONDITIONING .
Fill and leak check the power steering system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
Fill and leak check the cooling fan system. For additional information, refer to ENGINE COOLING .
Fill the automatic transmission and leak check the cooling system. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 5R55S .
