Exhaust System - Exploded View
Exhaust System - Exploded View

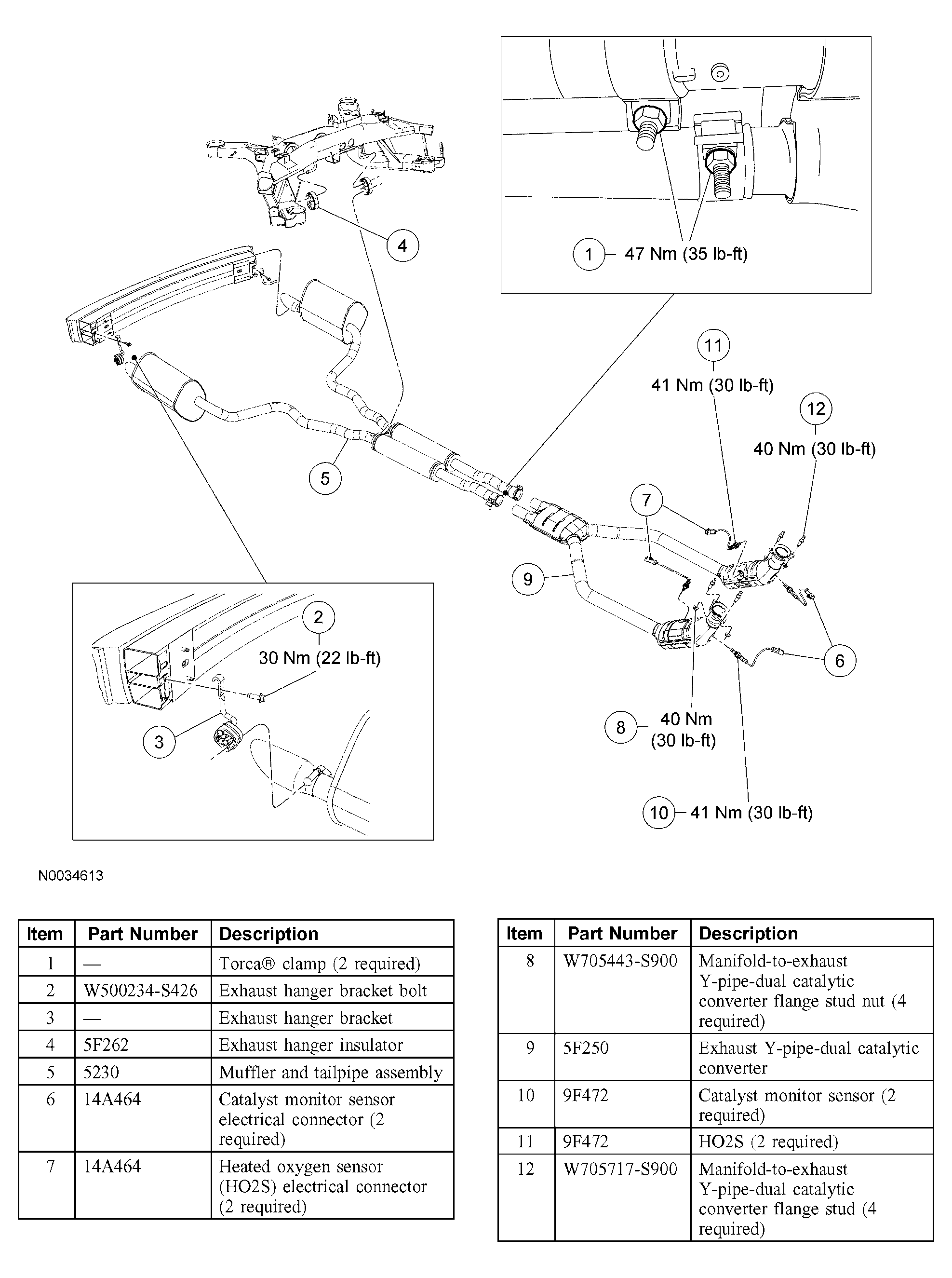

Fig 1: Exhaust System - Exploded View With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate PROCEDURES in this article.
Courtesy of FORD MOTOR CO.
