Home >> Ford >> 2005 >> Thunderbird >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel And Console >> Removal And Installation >> Floor Console >> Notes

Floor Console: Notes

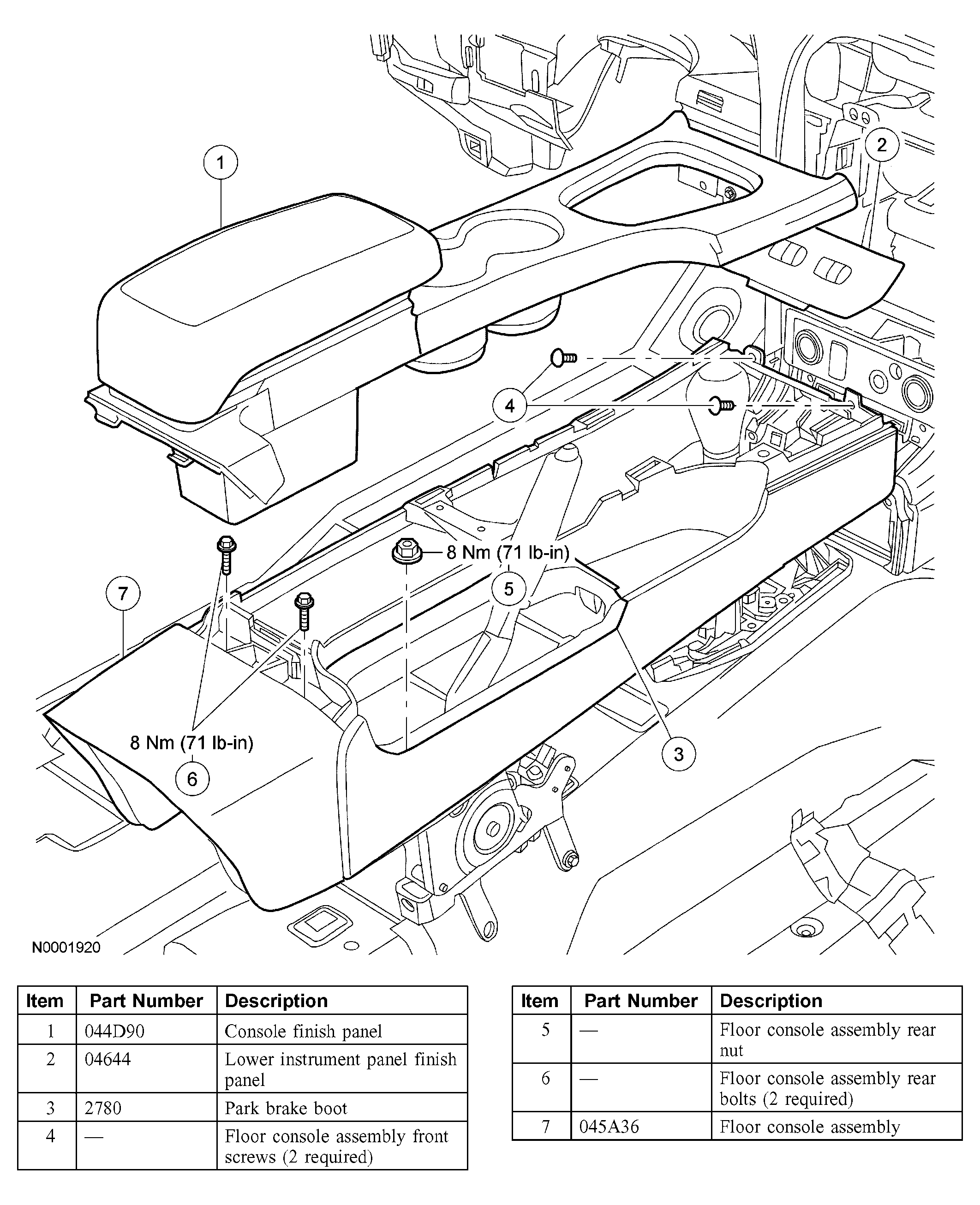

Fig 1: Floor Console Replacement Components With Torque Specifications

G04009873

Courtesy of FORD MOTOR CO.
