Connector Reference and Terminal Readings

Brake Fluid Level Switch C124

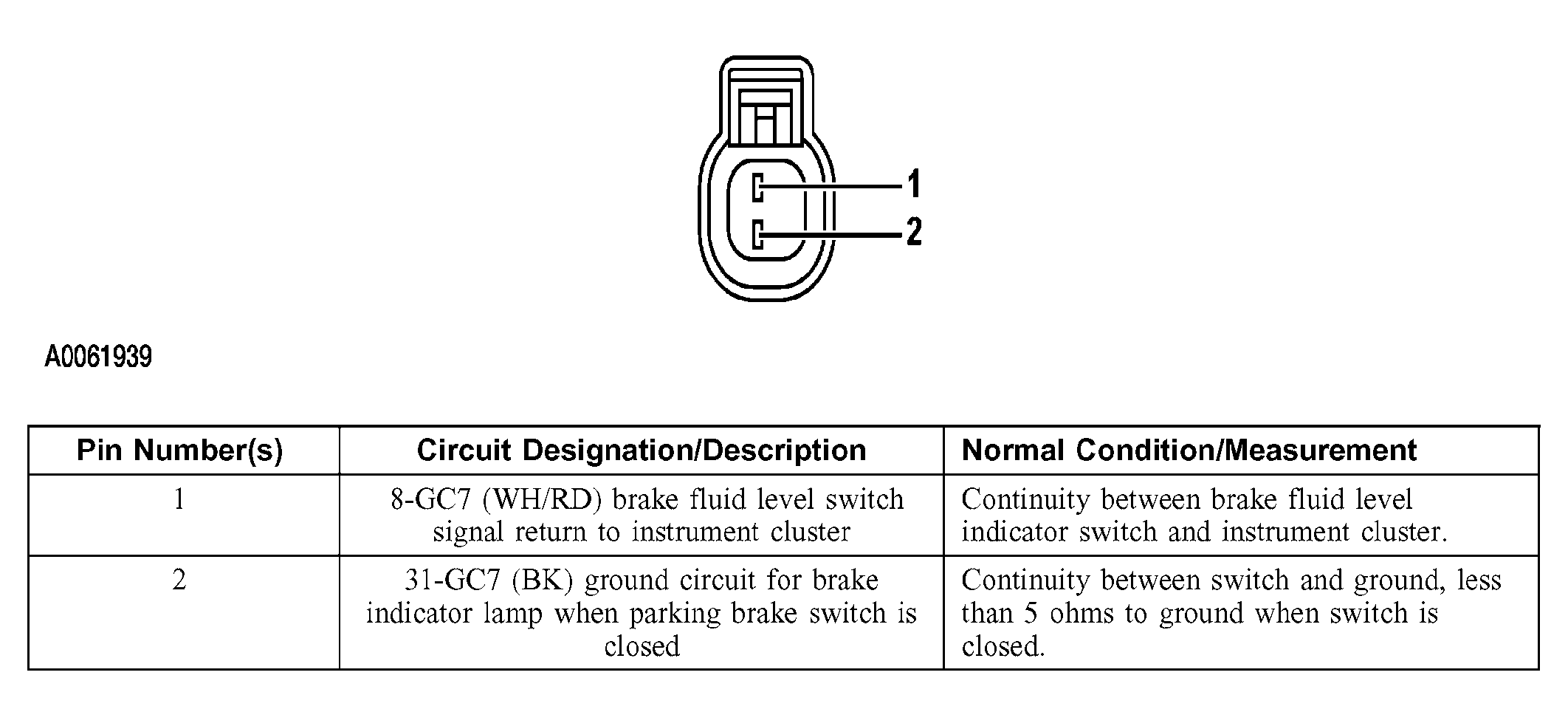

Fig 1: Identifying Brake Fluid Level Switch C124 Connector Pins

Courtesy of FORD MOTOR CO.

Front Electronic Module (FEM) C201c

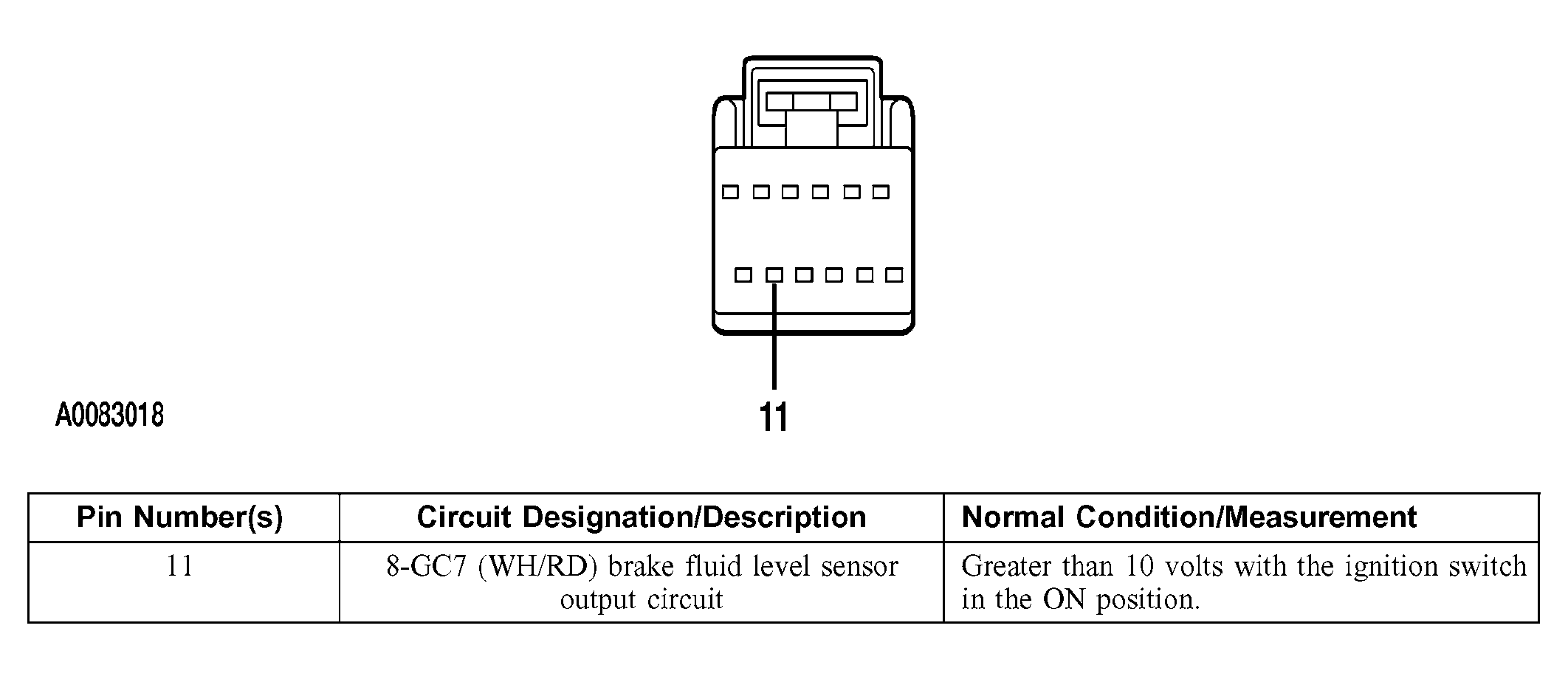

Fig 2: Identifying Front Electronic Module C201C Connector Pins

Courtesy of FORD MOTOR CO.
