Seats - Exploded View

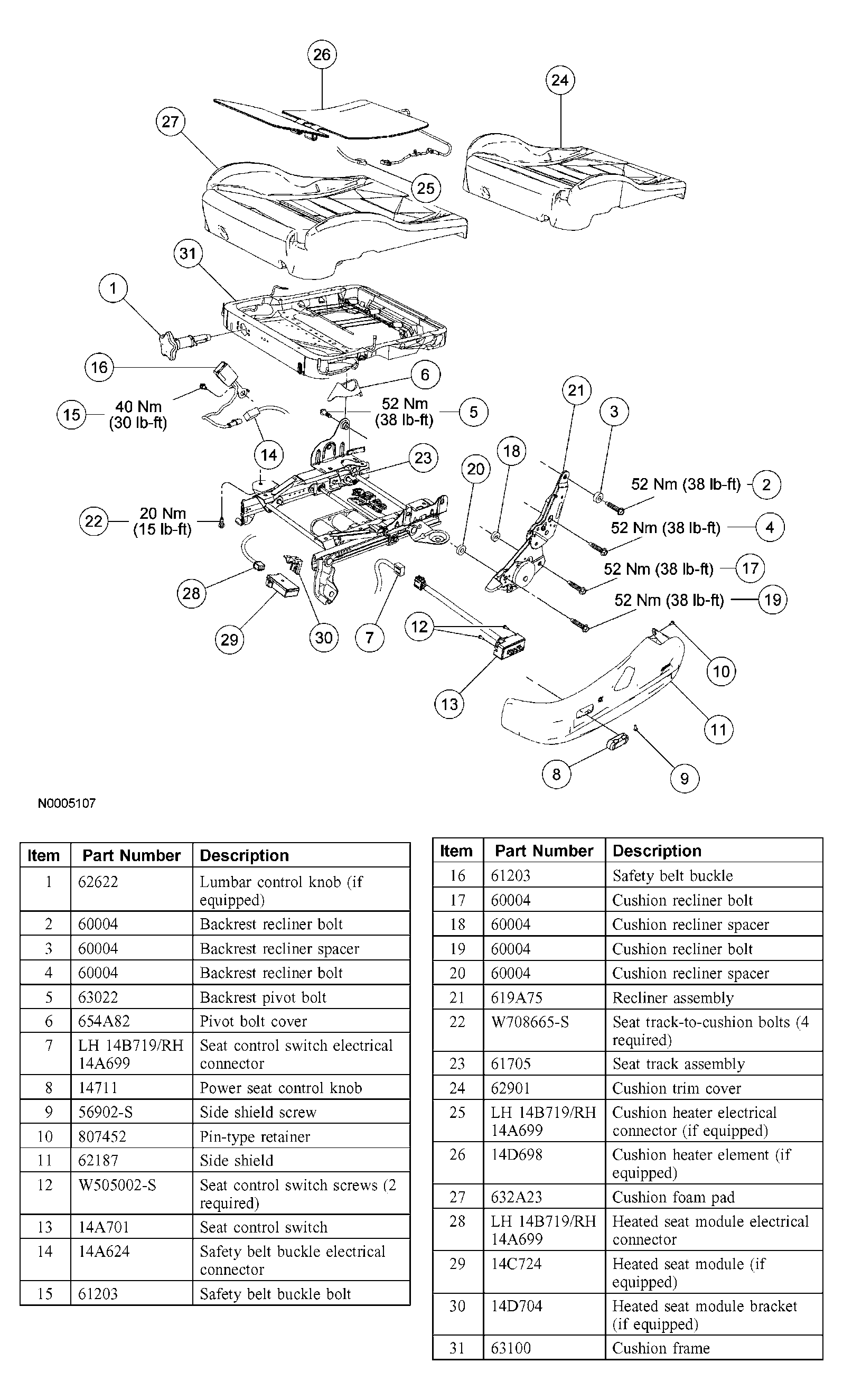

Fig 1: Exploded View Of Front Seat Cushion With Torque Specifications
G04009720Courtesy of FORD MOTOR CO.

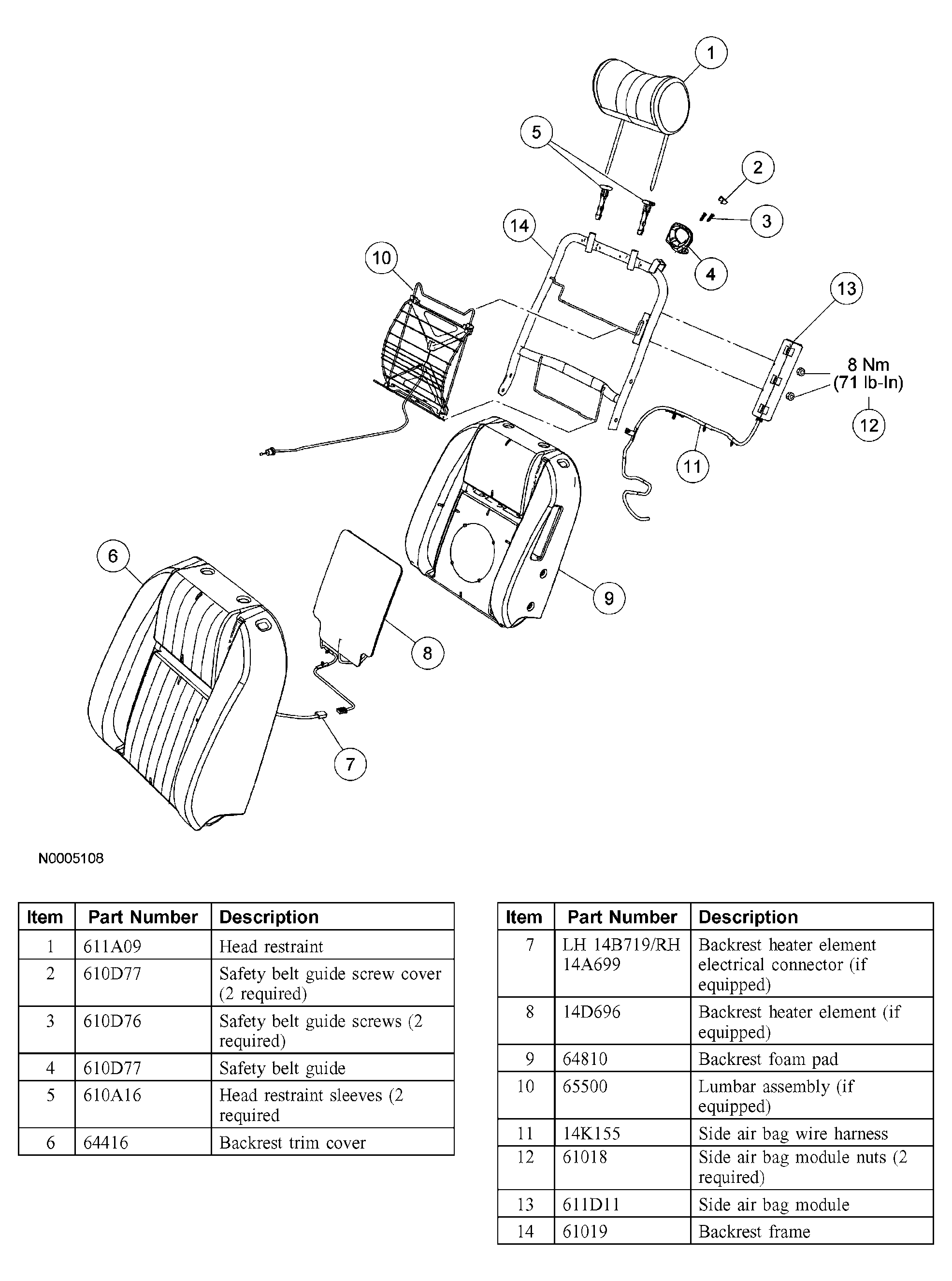

Fig 2: Exploded View Of Front Seat Backrest With Torque Specification
G04009721Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
