Exterior Mirrors - Exploded View
Exterior Mirrors - Exploded View

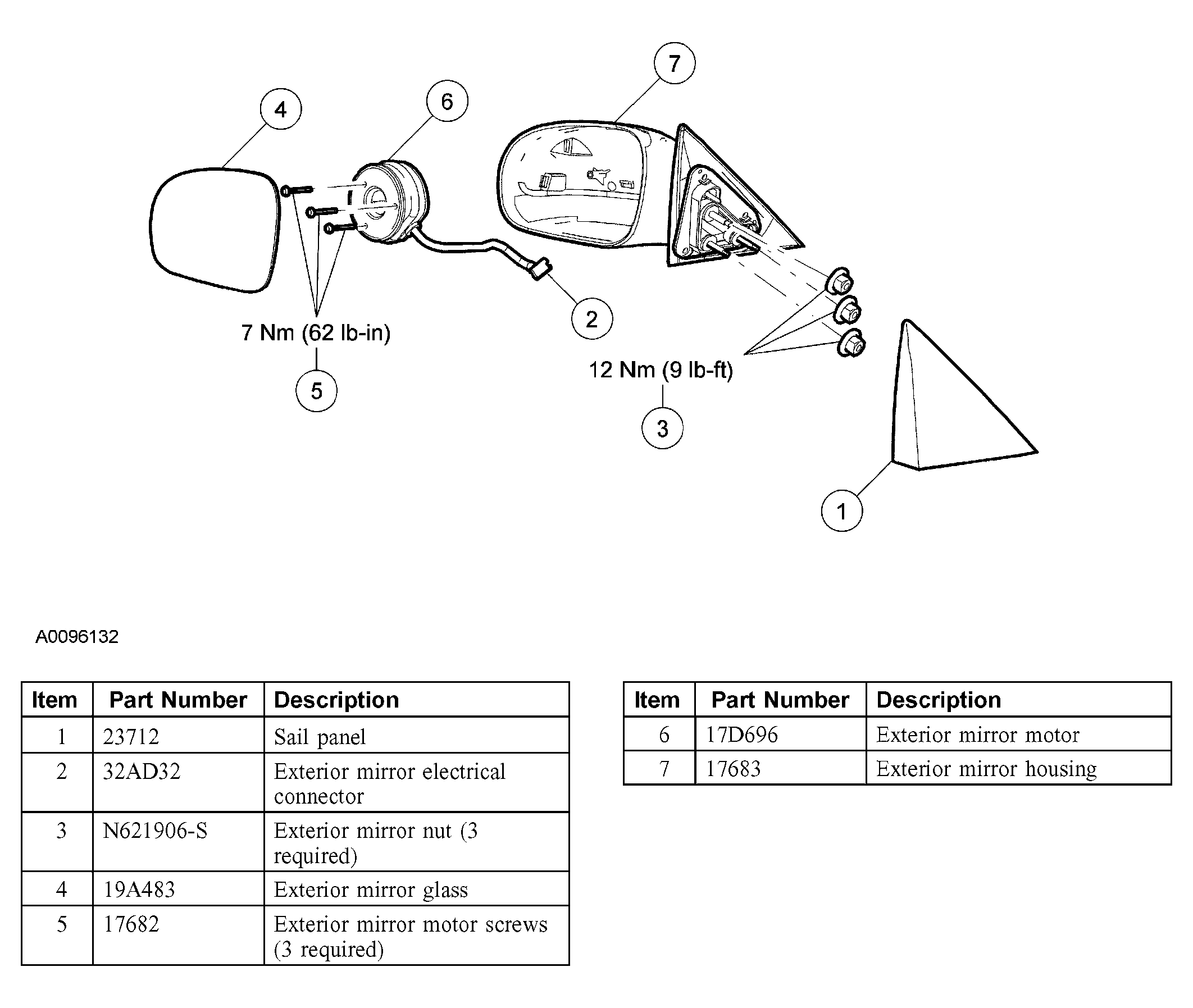

Fig 1: Exploded View Of Exterior Mirrors With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
Courtesy of FORD MOTOR CO.
