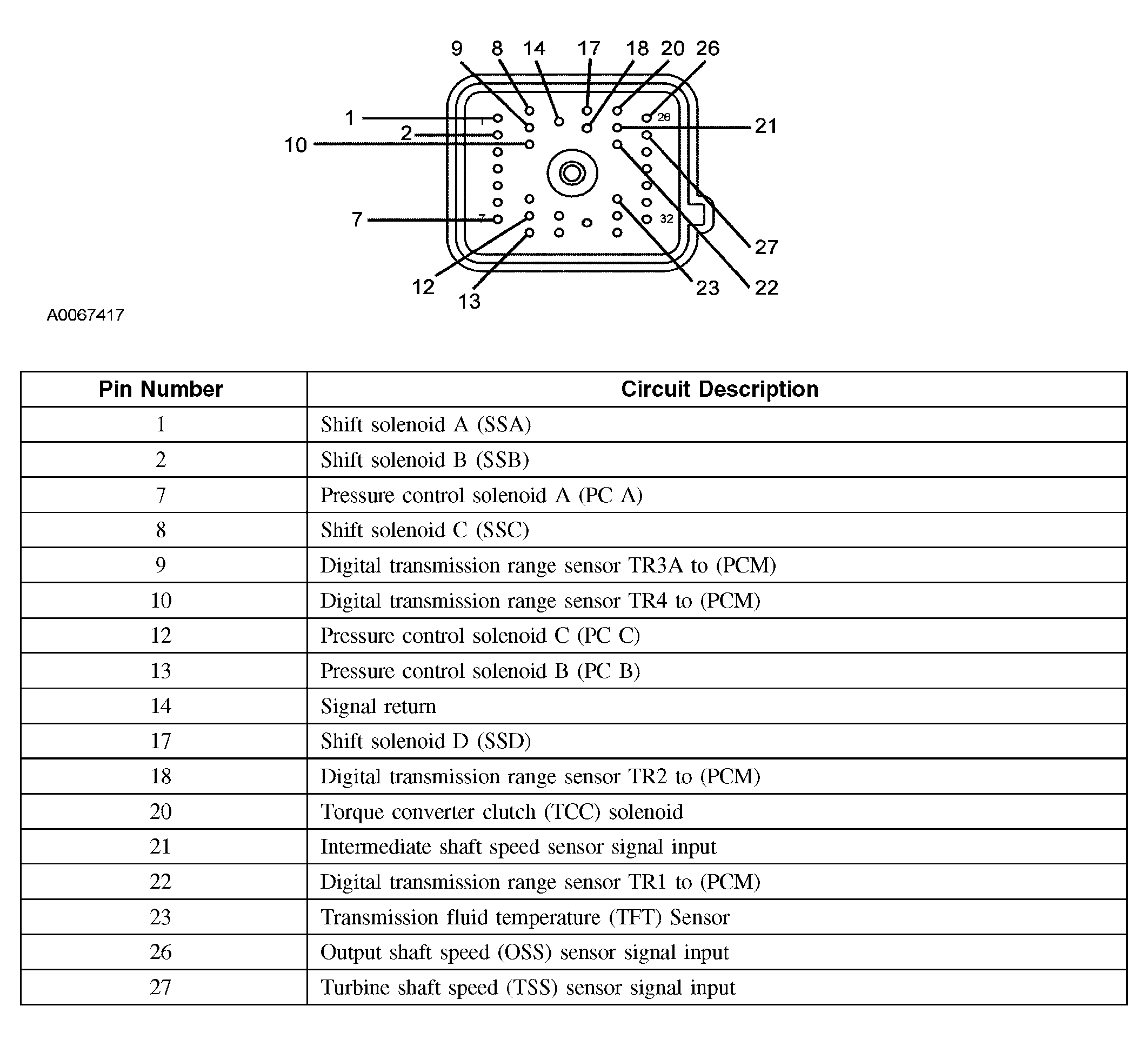

Home >> Ford >> 2005 >> Thunderbird >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Automatic Transmission >> Diagnosis And Testing >> Transmission Connector Layouts >> Connector Reference and Terminal Readings >> Powertrain Control Module (PCM)
