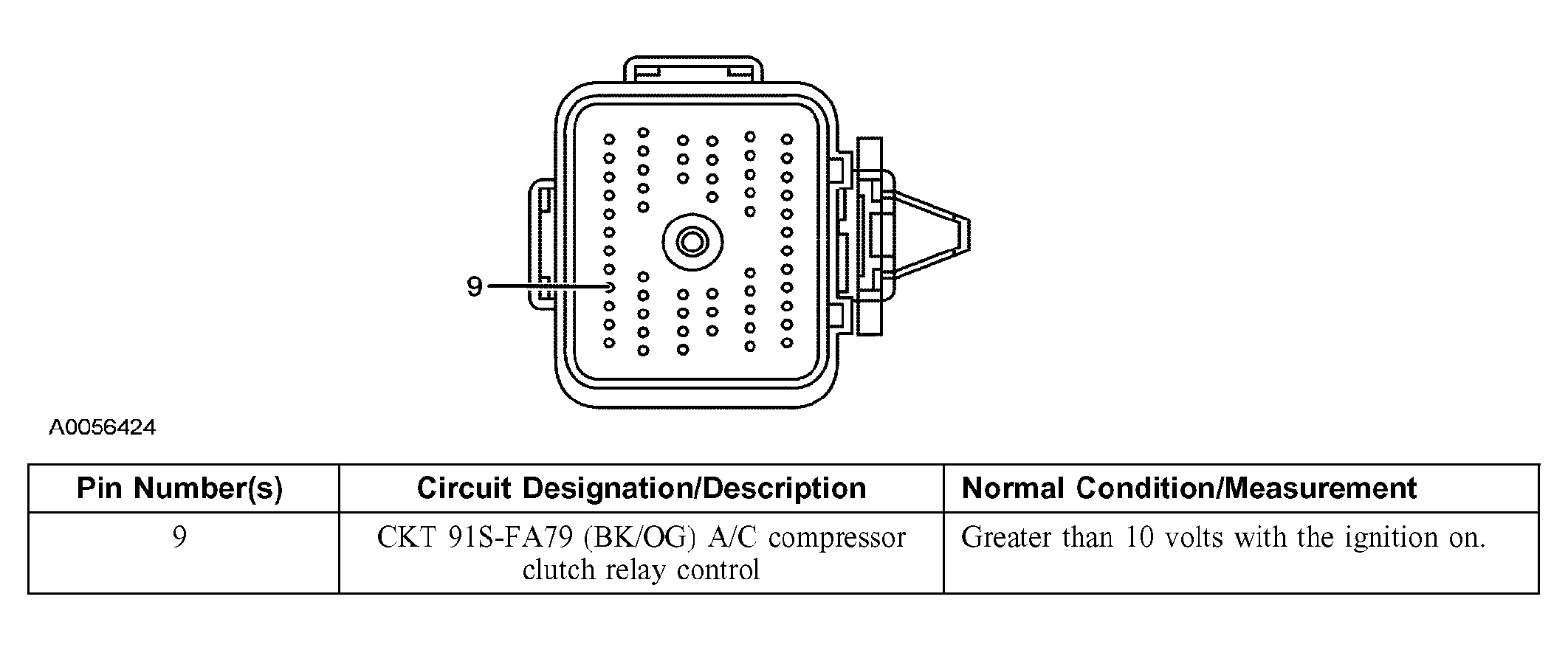

Home >> Ford >> 2005 >> Thunderbird >> Repair and Diagnosis (Single Page) >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> HVAC Control System - General Information >> Diagnosis And Testing >> Climate Control System >> Connector Circuit Reference >> Powertrain Control Module (PCM) C175a
